Types of PEB Structure: Complete 2026 Guide Explaining Types, Cost & Benefits

When planning an industrial building, selecting the right PEB Structure is one of the most critical decisions you will make. Your choice dictates how efficiently your daily operations run, how much usable floor space you get, and how your construction costs behave over time. Many project owners initially focus solely on the cost per square foot. However, the specific structural layout actually has a much larger impact on internal movement, long-term maintenance, and future expansion flexibility.

Pre-engineered buildings (PEBs) have fundamentally changed modern industrial construction. By shifting the bulk of the fabrication work from the construction site to a controlled factory environment, PEBs offer unmatched speed, precision, and cost predictability. Yet, a PEB is not a single, one-size-fits-all product. It is a highly customizable category of steel systems.

This comprehensive guide will walk you through the various types of PEB structures available today. We will look at how they are classified, compare their costs, and explore their ideal applications. By the end of this post, you will know exactly how to choose the right structural framework for your next warehouse, factory, or commercial project.

Why does choosing the right PEB structure matter in PEB construction?

Most project delays and budget overruns in industrial construction trace back to a single early mistake. That mistake is selecting the wrong structural type before fully understanding the site conditions, operational loads, and future expansion plans.

A single-span clear building works exceptionally well for a mid-size warehouse, but becomes inefficient and expensive if you stretch it beyond a certain width. Conversely, a multi-span system reduces steel tonnage on massive footprints but introduces interior columns that might conflict with your material handling equipment.

For a factory owner or warehouse investor, the structural choice made during the initial design stage sets the financial benchmark. It determines the construction timeline and controls long-term flexibility. Revisiting that choice after steel fabrication has started will cost you significant time and money.

What is a PEB Structure?

A PEB structure is a steel building system designed and fabricated in a controlled factory environment and then transported to the site, where the PEB structure is assembled using bolted connections. The primary frame components include columns, rafters, and connecting plates that are manufactured as per exact dimensions based on structural calculations specific to your project.

Unlike conventional steel construction, where raw steel sections are cut and welded on the actual site, a PEB Structure arrives as a set of pre-tested, ready-to-assemble components. This eliminates most on-site fabrication work, significantly reducing labour requirements and shortening the erection timeline. In most industrial projects, a PEB frame can be erected in four to six weeks once the foundation is fully prepared.

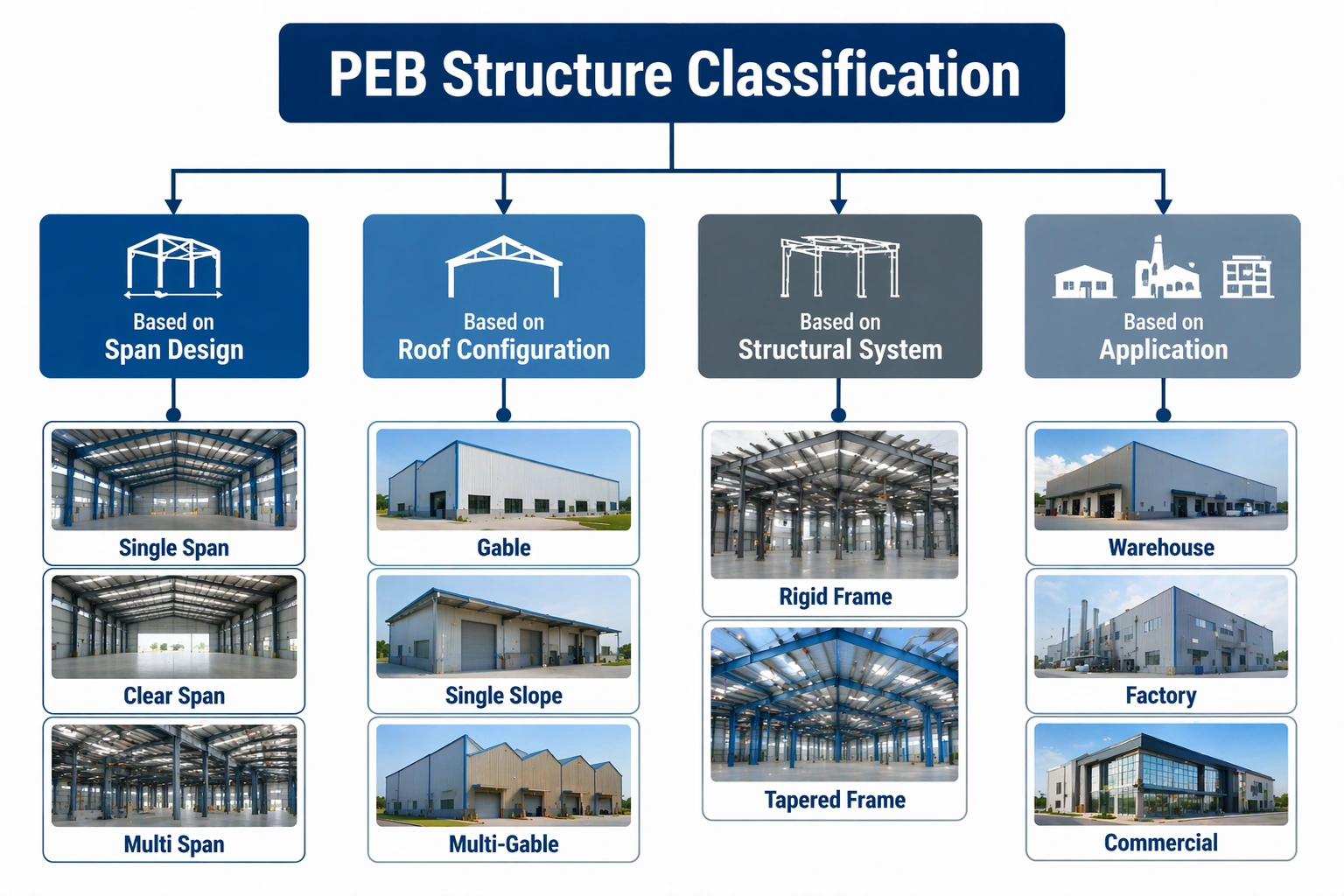

How are PEB structures classified?

PEB structures fall into several categories depending on the primary design parameters of a given project. Understanding these classifications helps you narrow down the right structure before any detailed engineering begins.

1. Based on Span Design

Span refers to the horizontal distance between primary support columns. PEB structures are classified as single-span, clear-span, or multi-span based on column placement. Clear-span offers no internal columns, while multi-span uses intermediate supports to reduce steel usage and improve efficiency for wider buildings

2. Based on Roof Configuration

Roof configuration affects drainage, structural performance, and building width. Common types include double-slope (gable), single-slope, and multi-gable roofs. Gable roofs suit most industrial buildings, single-slope roofs work for smaller structures, while multi-gable designs are used when building width exceeds single ridge limits.

3. Based on the Structural System

PEB structures use rigid or tapered frame systems. Rigid frames maintain uniform sections, while tapered frames vary in depth to match load distribution. Tapered systems are more material-efficient, especially for spans above 20 meters, reducing steel consumption and making them ideal for large warehouses and factories.

4. Based on Application

Building application determines key design factors such as load capacity, height, ventilation, and crane requirements. Warehouses, factories, and commercial buildings require different structural approaches. Even with similar dimensions, each application demands specific engineering design, directly impacting steel quantity, cost, and overall performance.

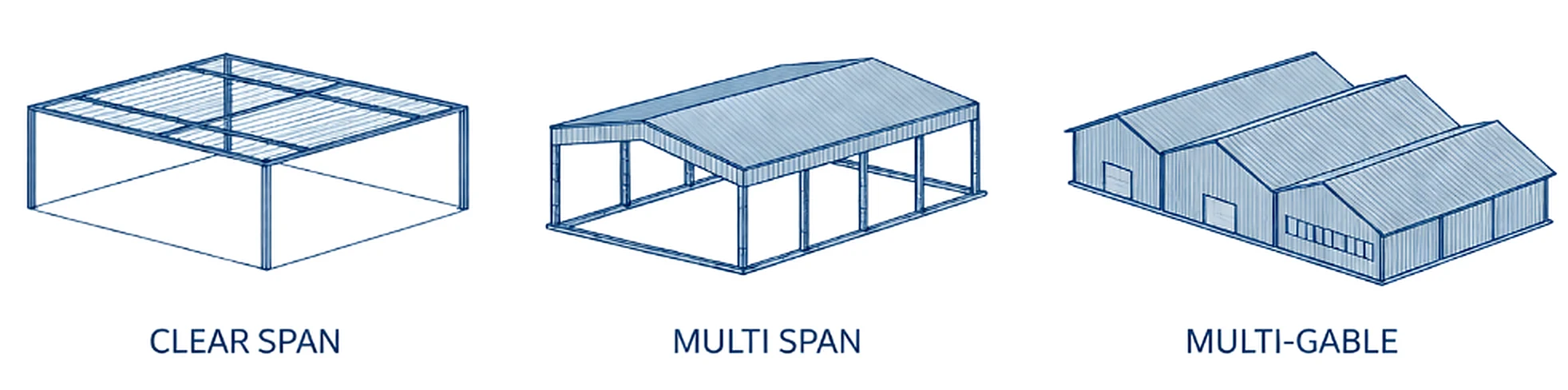

Exploring Different Types of PEB Structure

Every industrial project comes with unique requirements, and no single PEB structure fits all scenarios. Each type is designed to solve specific challenges related to span, cost, and functionality. Understanding these options helps you select the most efficient and practical structure for your warehouse, factory, or commercial building project.

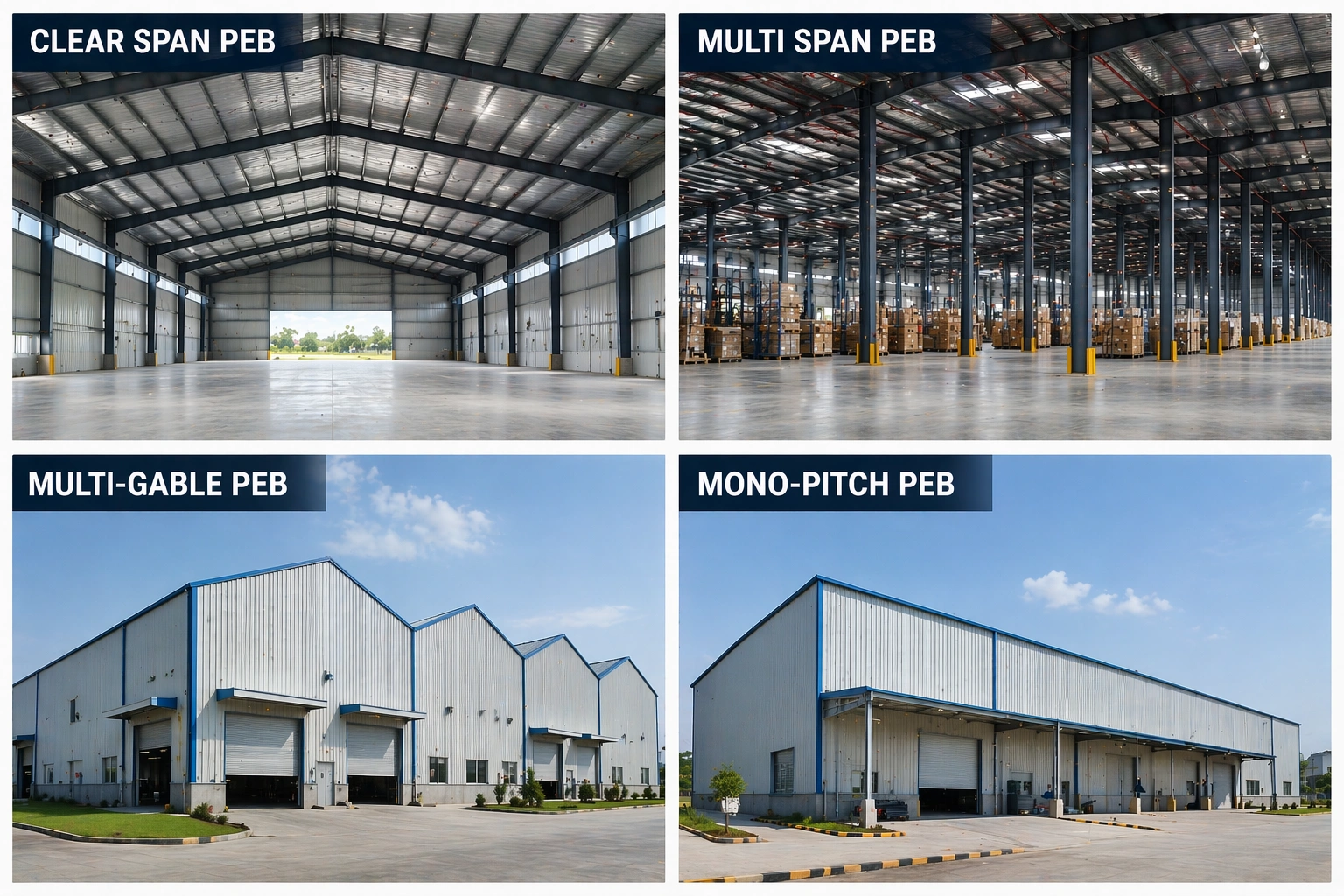

1. Clear Span PEB Structure

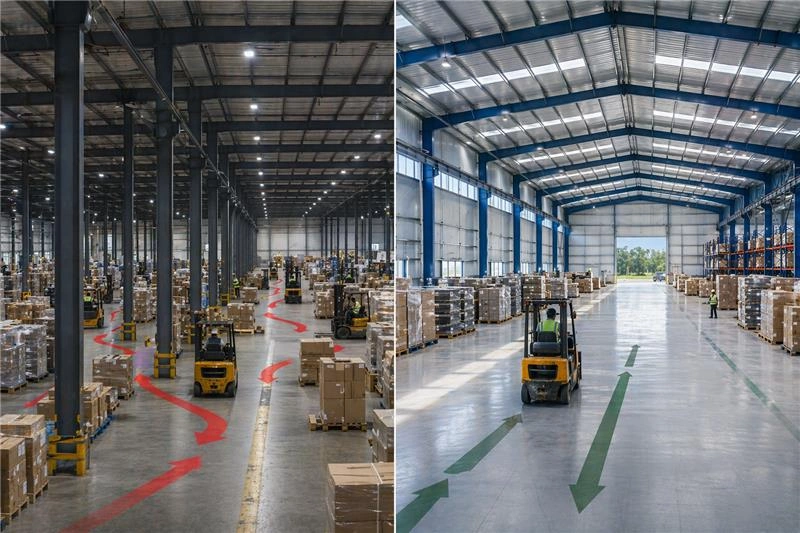

A clear-span PEB structure eliminates internal columns and creates completely unobstructed space. Perimeter columns carry all vertical loads, keeping the entire floor area open for movement and operations.

This layout works best in environments where space utilisation is critical. Warehouses, hangars, and industrial facilities benefit significantly, especially when operations rely on forklifts, reach trucks, or wide aisle systems. Open space improves movement, storage flexibility, and overall efficiency.

However, clear-span designs are typically economical up to around 25–30 meters in width. As the span increases, steel consumption and rafter depth rise quickly, making alternative systems more practical for larger buildings.

2. Multi Span PEB Structure

A multi-span PEB introduces one or more rows of intermediate columns, dividing the building width into multiple bays. Each bay behaves like a smaller structural span, which improves efficiency for wider buildings.

This approach significantly reduces steel usage. For example, a 60-meter-wide facility can save up to 20–30 per cent of steel compared to a clear-span structure of the same size.

At the same time, internal columns add functional advantages. You can use them to support mezzanine floors or integrate material handling systems. That said, proper layout planning becomes essential to maintain smooth movement and efficient space utilisation.

3. Multi-Gable PEB Structure

A multi-gable PEB consists of multiple gable frames placed side by side, connected along shared ridge lines. From the outside, the building appears as a series of parallel pitched roofs.

This configuration works well for very wide buildings where a single large-span frame becomes inefficient. It helps maintain a manageable structural height while ensuring effective drainage.

You’ll commonly see multi-gable structures in large manufacturing plants and automobile facilities where width and scalability are major requirements.

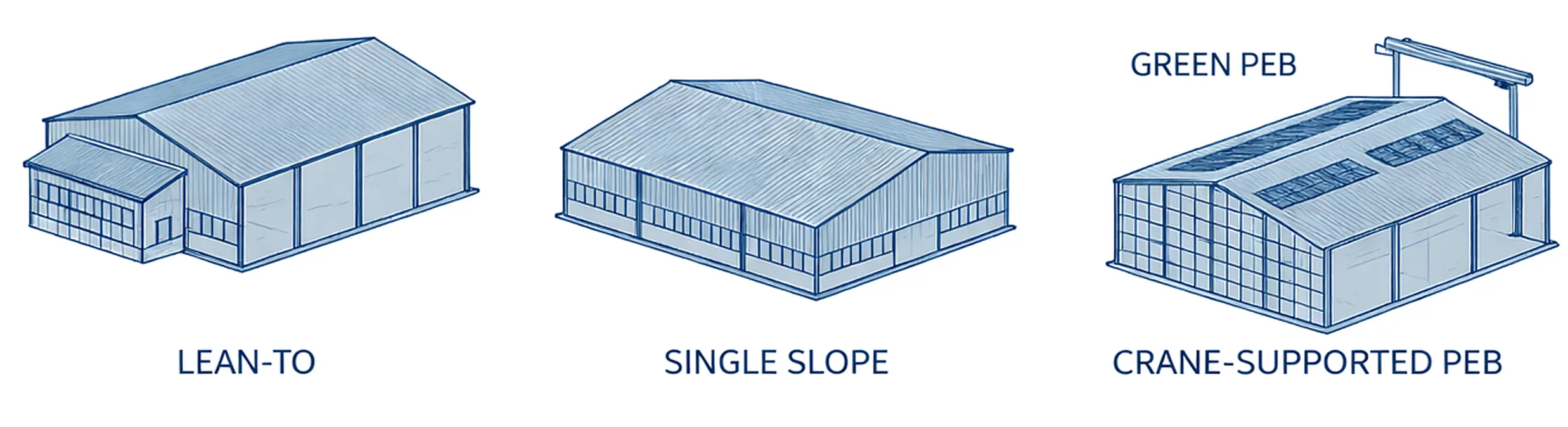

4. Single Slope (Mono-Pitch) PEB Structure

A single slope PEB, also known as a mono-pitch structure, features a roof that slopes in one direction between two walls of different heights. This eliminates the central ridge and creates a clean, modern building profile.

Site constraints and drainage requirements usually drive this design. By directing water toward one side, it simplifies drainage systems and avoids issues with neighbouring properties.

This structure suits smaller commercial buildings, storage units, and strip developments where controlled water flow and specific height clearance are important. Depending on requirements, it can be designed as either a clear-span or multi-span system.

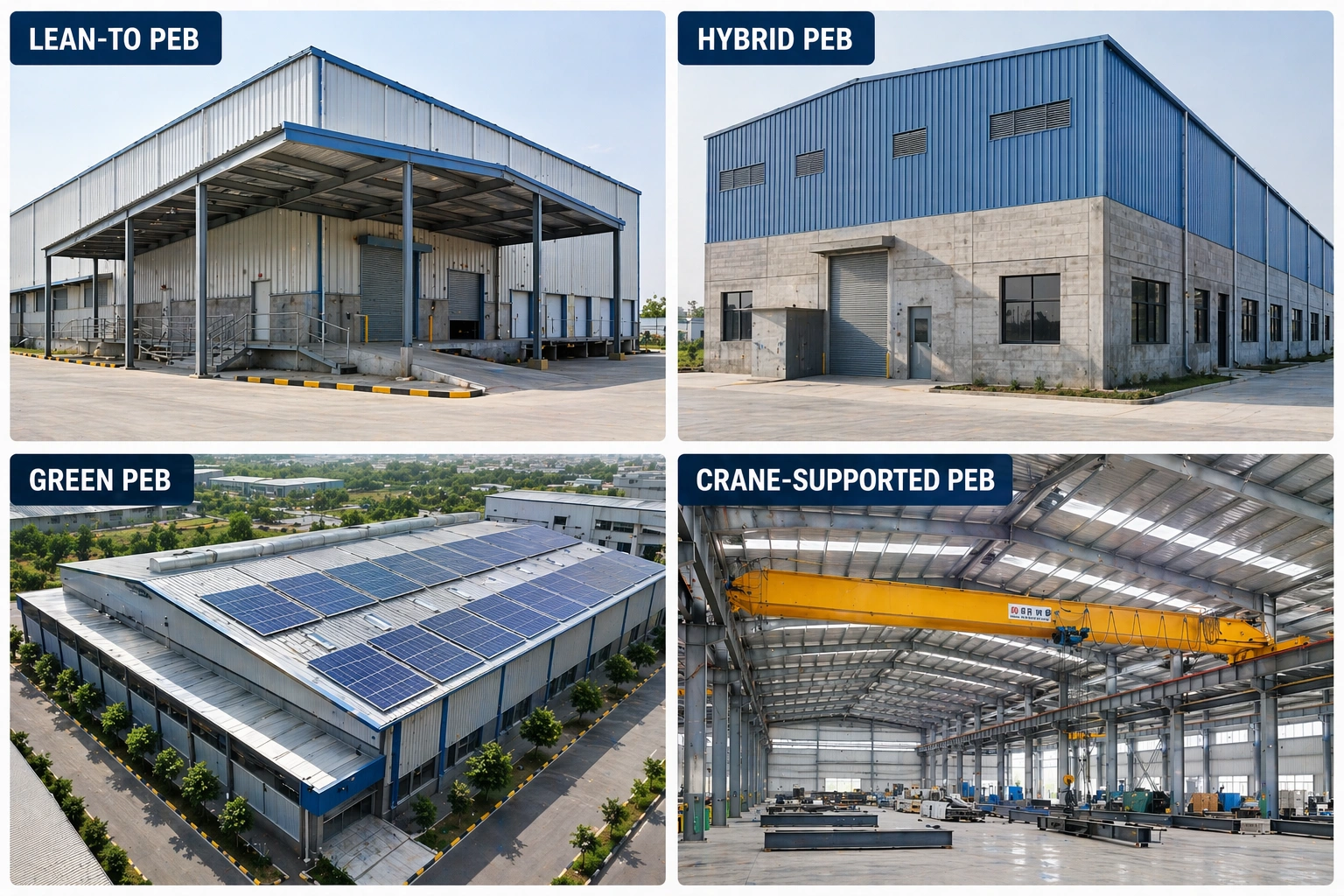

5. Lean-To PEB Structure

A lean-to PEB structure acts as an extension attached to an existing building. It uses a single-slope roof supported by one side of the main structure and an independent column line on the other.

This is one of the most practical solutions for expansion. Instead of building a separate structure, businesses can add storage space, loading areas, or small work zones at a lower cost and in less time.

Lean-to systems also offer flexibility. You can customise them based on available space and operational needs while continuing ongoing activities with minimal disruption.

6. Hybrid PEB Structure

A hybrid PEB combines steel framing with conventional construction methods such as RCC or masonry. Engineers typically design the lower portion in concrete to handle heavy loads, while the upper structure uses steel for faster construction and wider spans.

This combination allows better control over cost, performance, and aesthetics. It also supports higher load capacity and improved fire resistance.

Hybrid structures are widely used in multi-story industrial buildings, commercial complexes, and showrooms where both functionality and visual appeal matter.

7. Green PEB Structure

A green PEB focuses on reducing energy consumption and improving sustainability. These structures integrate features such as high-performance insulation, cool roof coatings, natural daylight panels, rainwater harvesting systems, and solar-ready roofs.

Unlike other PEB types, green design is not a separate structure; it can be applied to any PEB building. Whether it’s a warehouse or factory, you can incorporate these features to improve efficiency.

Although the initial cost may be slightly higher, long-term savings in energy and maintenance make it a smart investment. Businesses also benefit from improved environmental performance and future readiness.

8. Crane-Supported (Specialised) PEB Structure

Crane-supported PEB structures are designed for facilities that require overhead cranes for heavy material handling. These buildings handle dynamic loads, including lifting forces, horizontal movement, and continuous operational stress.

Crane capacity directly determines the structural design. Column size, rafter strength, and base plates must match the load requirements. Once designed, upgrading crane capacity later requires major structural changes.

These structures are essential in heavy manufacturing units, steel plants, and industrial assembly facilities where precision and load handling are critical.

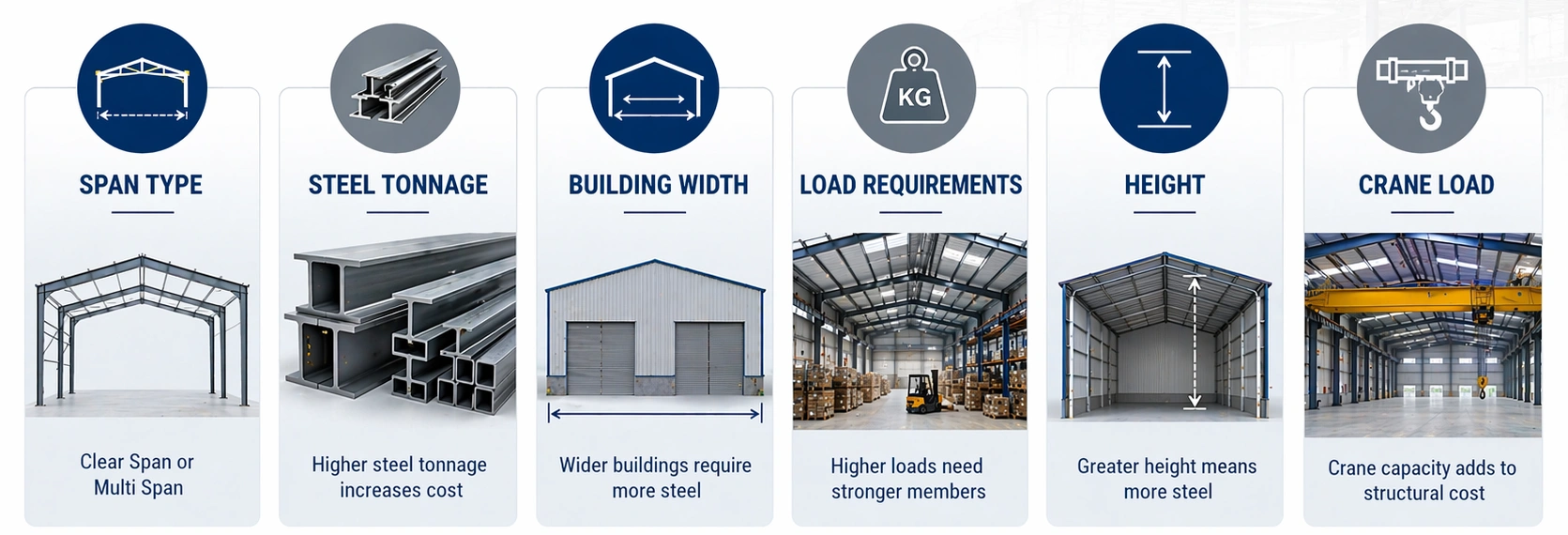

How do different types of PEB Structures affect the Cost of buildings?

The structural type you select directly dictates the total steel tonnage, which remains the single largest cost driver in any PEB project.

Cost Range: In India, basic PEB structures typically cost ₹200–₹300 per sq ft, while specialised buildings with heavy loads or large spans can go up to ₹400–₹600 per sq ft, depending on specifications.
Structural Design Impact: The choice of structure directly affects cost, as span type and load requirements determine steel quantity, fabrication complexity, and overall project budget.
Clear Span vs Multi Span: Clear-span buildings require heavier steel sections, increasing cost, whereas multi-span structures reduce cost by distributing loads across internal columns.
Wide Building Efficiency: For buildings wider than 80 feet, multi-span designs are generally more economical due to lower steel consumption and better structural efficiency.
Cost Influencing Factors: Building dimensions, height, wind and seismic loads, customisation requirements, and fluctuations in steel prices significantly impact the final cost.
Light vs Heavy Structures: Lightweight storage structures cost less, while heavy-duty buildings with cranes, mezzanines, or high load capacity require stronger steel and foundations, increasing overall expenses.

Design Considerations for PEB Structures

Before finalising a PEB design, several site-specific and operational factors must be evaluated. These parameters directly influence structural safety, material requirements, and overall project cost. Proper planning at this stage ensures efficient design, smooth approvals, and long-term performance of the building.

Wind Load & Environmental Conditions: Wind load plays a critical role in structural design as per IS 875 Part 3. Buildings in coastal or high-wind zones require stronger bracing systems, heavier purlins, and reinforced cladding connections to ensure stability and safety under extreme environmental conditions.
Seismic Design: Seismic considerations are essential in India, as defined under IS 1893. Structures in Zones III, IV, and V must handle lateral earthquake forces through enhanced bracing systems and reinforced column base connections, ensuring structural integrity and safety during seismic events.
Soil & Foundation Requirements: Soil bearing capacity directly affects foundation design. PEB structures transfer concentrated loads through column bases, and weak or expansive soils require deeper or pile foundations. This significantly impacts civil costs and must be evaluated before structural planning begins.
Bay Spacing & Load Distribution: Bay spacing defines the distance between structural frames. Wider spacing reduces the number of frames but increases the size of secondary members like purlins and girts. Typically, 6–8 meter spacing offers the most cost-effective balance for warehouse construction.

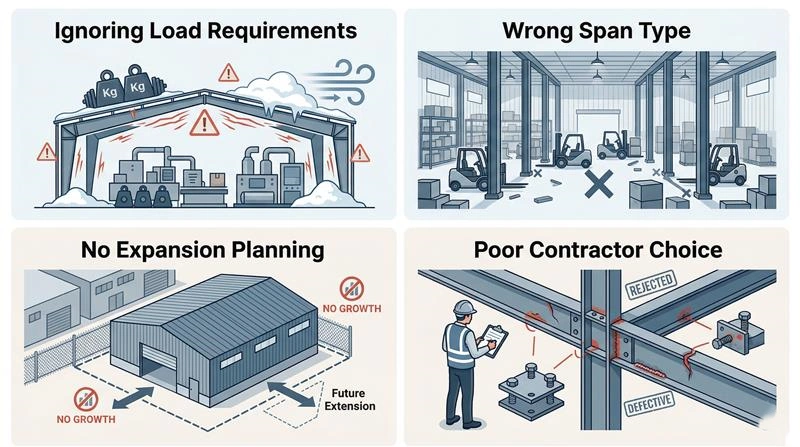

Common Mistakes When Selecting PEB Structure

Ignoring Load Requirements: Failing to define operational loads early leads to major design issues. Factors like high-density storage, mezzanine floors, and overhead equipment directly impact column size and foundation design. Ignoring them often results in costly redesigns or structural limitations later.
Choosing the Wrong Span Type: Selecting an unsuitable span type can either increase costs or reduce usability. Clear-span structures may be unnecessarily expensive, while multi-span designs can obstruct movement if not planned properly. Aligning span selection with operational needs is critical.
Underestimating Future Expansion: Designing only for current needs limits future growth. Without provisions for expansion, adding extensions like lean-to structures later requires structural modifications. Planning for scalability from the beginning helps avoid expensive retrofitting and operational disruptions.
Poor Contractor Selection: Choosing a contractor based only on the lowest price often compromises quality. Factors like fabrication standards, engineering expertise, and project execution capabilities play a crucial role in ensuring the safety, durability, and long-term performance of the structure.

Applications of Pre-Engineering Buildings

Warehouse & Logistics Buildings: Utilising multi-span designs for massive, cost-effective storage spaces.
Factory & Manufacturing Units: Using clear span or crane-supported structures to accommodate heavy machinery and assembly lines.

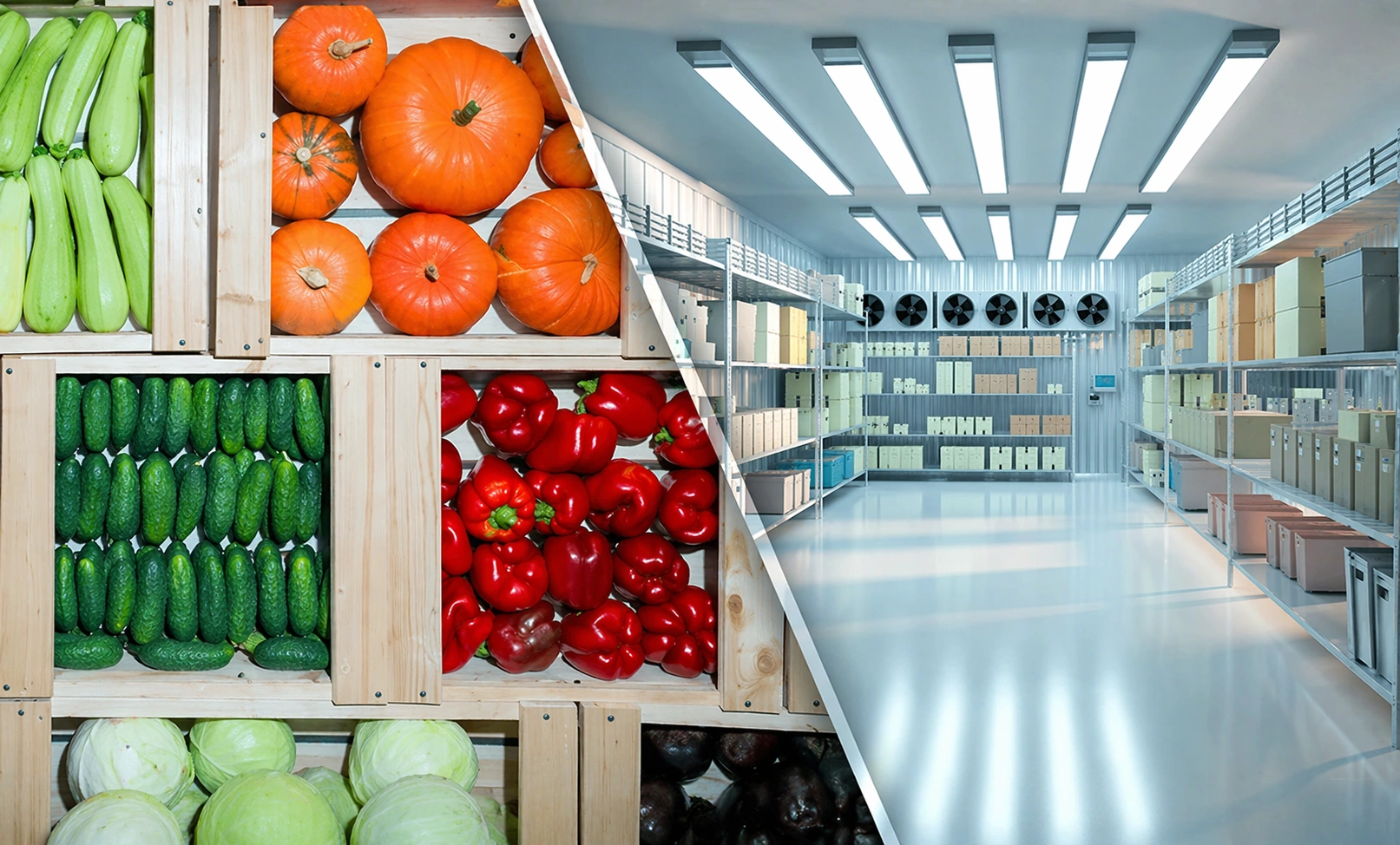

Cold Storage & Food Processing: Integrating heavily insulated sandwich panels with standard rigid frames to maintain strict temperature controls.
Aircraft Hangars & Infrastructure: Relying on massive clear span designs to house aeroplanes and large transport vehicles safely.
Commercial & Retail Buildings: Using hybrid or single-slope structures with glass facades for modern shopping centres and car dealerships.

Advantages of PEB Structures

Regardless of the specific frame you choose, PEBs offer several universal benefits:

Speed of Construction: Factory fabrication allows for rapid on-site assembly, often cutting construction time in half compared to conventional building methods.
Cost Efficiency: Precise engineering reduces steel waste, while lighter building weights lower foundation costs.
Flexibility & Scalability: Bolted connections make it remarkably simple to dismantle, move, or expand the building in the future.
Durability & Maintenance: High-grade galvanised steel resists rust, pests, and rot, ensuring decades of use with minimal upkeep.

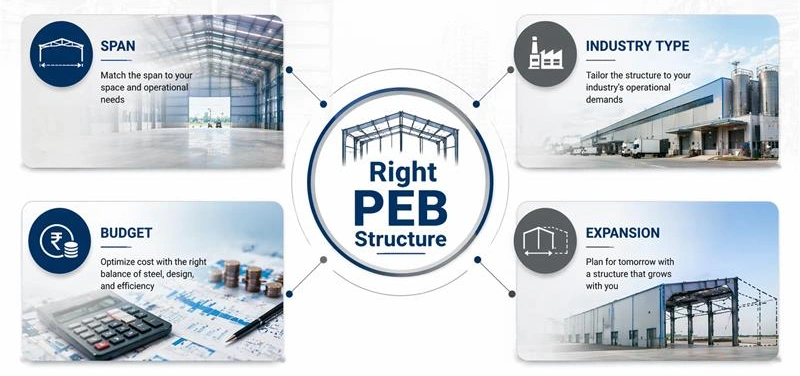

How to Choose the Right PEB Structure

Making the final call requires analysing four key pillars of your business plan:

Based on Span Requirement: Look at your floor plan. If large machinery or aircraft must move freely, invest in a clear span structure. If you only need to store pallets on racks, choose a budget-friendly multi-span structure.
Based on Industry Type: Match the building to your industry standards. Manufacturers need high roofs and crane supports, while retail stores prioritise lower roofs and aesthetic facades.
Based on Budget: Work backwards from your financial limits. If capital is tight, prioritise standard multi-span designs, standard bay spacing, and minimal custom architectural features.
Based on Future Expansion Needs: If you plan to grow, inform your builder immediately. They can design expandable end-walls that make adding onto the building later fast and affordable.

Final Thoughts on PEB Structures

Choosing the right PEB structure is a critical decision that directly impacts cost, efficiency, and long-term performance. Each type, whether clear span, multi-span, or specialised designs, serves a specific operational purpose. Align your structure with workflow requirements, load conditions, and future expansion plans to avoid costly changes later. Careful planning ensures smoother execution and better space utilisation. By working with experienced engineers and selecting the appropriate design early, you can build a facility that supports productivity, reduces operational challenges, and delivers reliable performance for decades.
