Cold Storage Explained: The Ultimate 2026 Guide to Types, Design, Cost and Applications

Most businesses realize the complexity of cold storage only after a shipment gets rejected, a batch expires early, or a compliance audit flags temperature deviations. In India, around 15–20% of perishable produce is lost due to gaps in cold storage infrastructure. This is not a storage problem. It is a system design problem.

Cold storage is a capital-intensive investment, and small design mistakes can lead to long-term operational losses. Poor insulation, incorrect temperature planning, or inefficient layout can increase energy use, disrupt operations, and damage inventory over time.

For a business owner, the key decision is not just building a facility but building the right one. This guide explains how cold storage works, the types available, and the factors you must evaluate before planning or investing.

What Is Cold Storage and Why Is It Important?

Cold storage is a facility that maintains a controlled temperature to preserve perishable goods, biological materials, and other temperature-sensitive products. In simple terms, it works as a large refrigerated space where you store products at specific temperatures to slow spoilage, control bacterial growth, and extend shelf life. The temperature depends on the product. For example, fresh produce needs temperatures just above zero, while meat or vaccines require much lower temperatures, often below freezing.

For businesses handling food, pharmaceuticals, dairy, or exports, cold storage is not optional. It directly supports compliance and day-to-day operations. Without it, products spoil faster, shelf life drops, and meeting regulatory standards becomes difficult.

However, many buyers confuse cold storage with a refrigerated warehouse or a cold room. A refrigerated warehouse manages bulk storage at a larger scale, while a cold room serves as a smaller unit within a facility. In contrast, cold storage is a broader term that includes both, depending on the scale and use.

How Does a Cold Storage Facility Work?

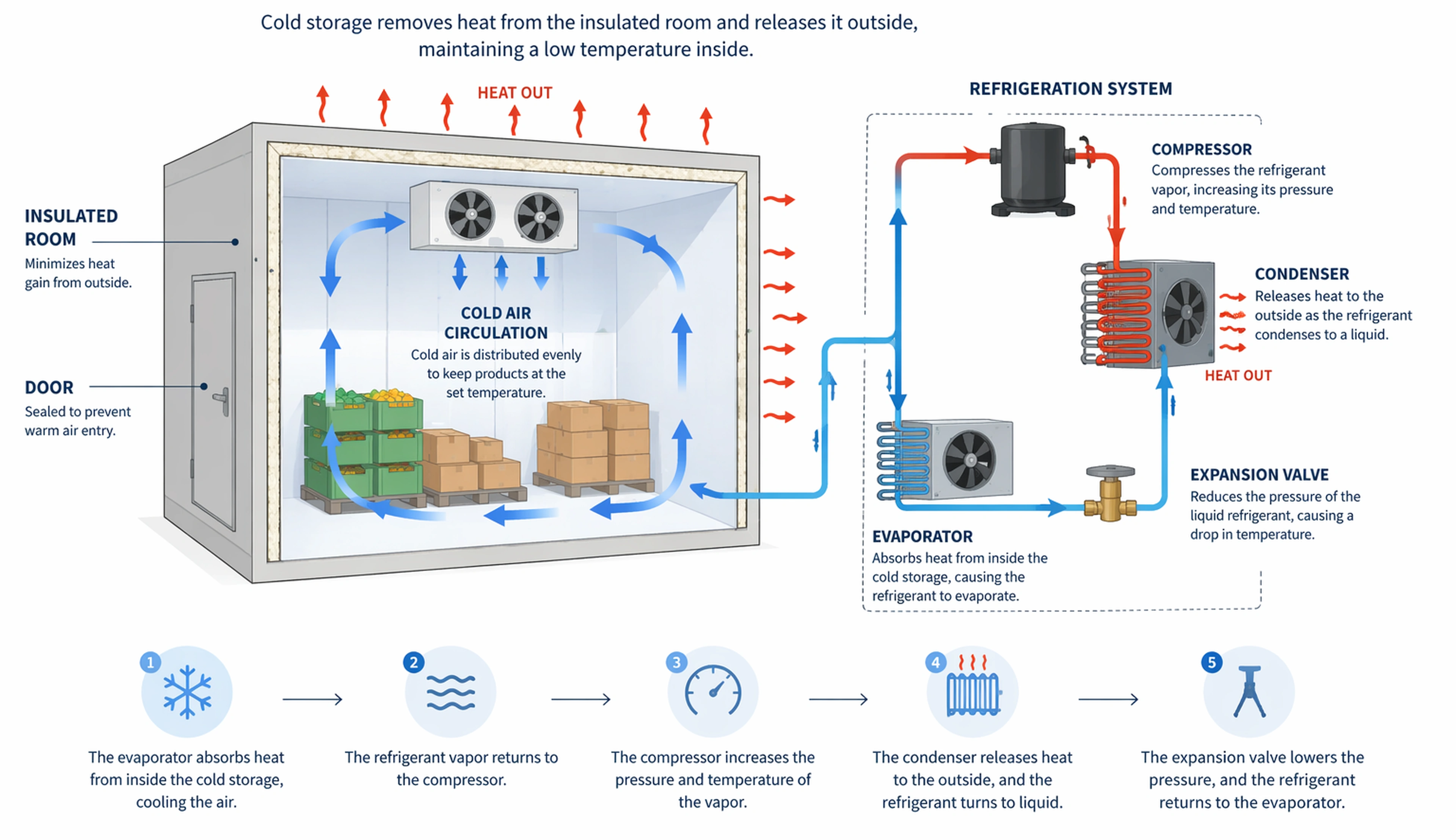

1. The basic working principle of temperature-controlled storage

A cold storage facility works by continuously removing heat from an enclosed space and maintaining a stable temperature. Heat naturally moves from warmer areas to cooler ones, so the system must continuously extract this heat. In simple terms, you are not creating cold air; you are removing heat from the space. If this cycle stops, the temperature rises quickly, and product quality begins to decline.

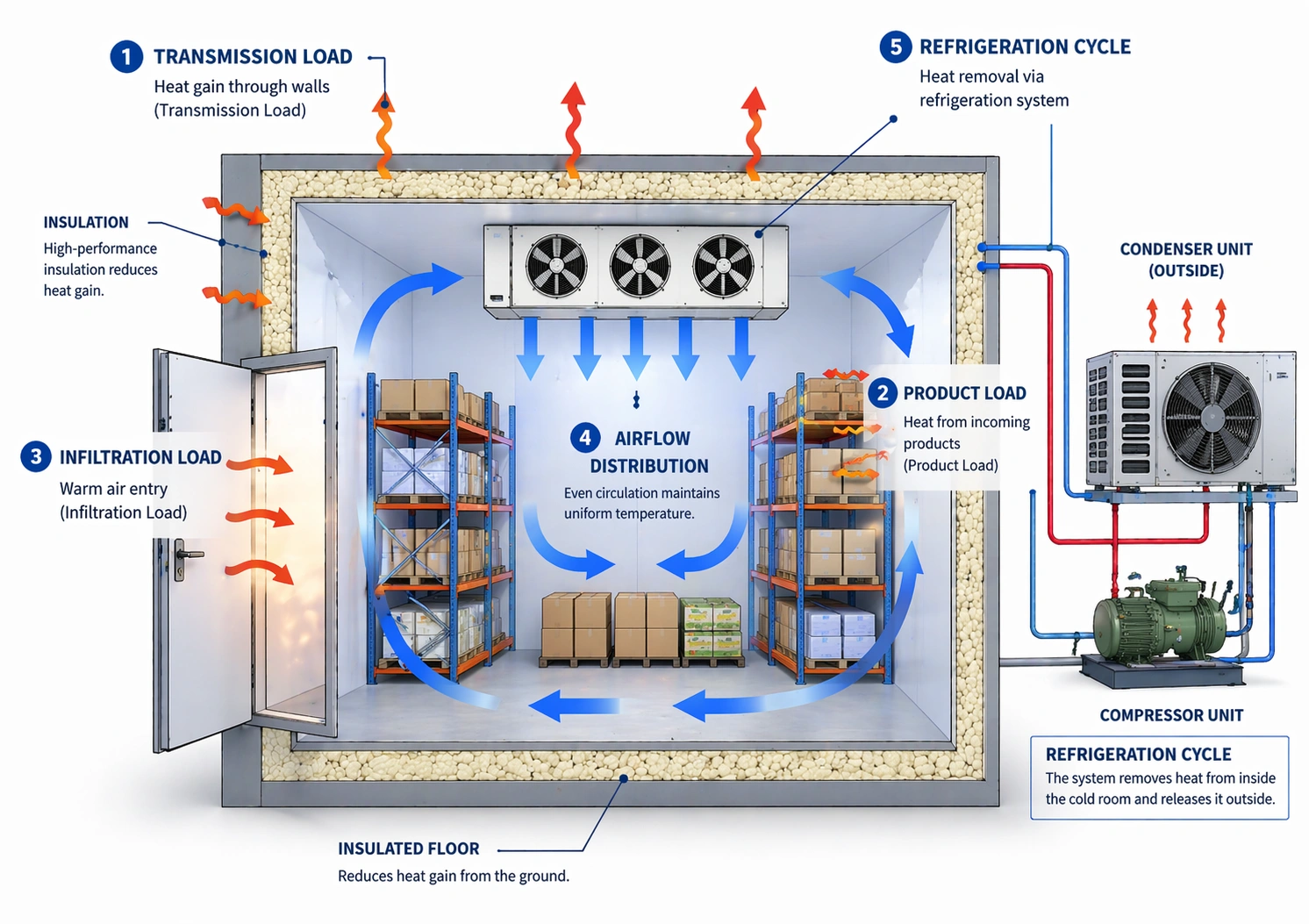

2. How refrigeration, insulation, and airflow work together

Cold storage performance depends on how well refrigeration, insulation, and airflow work together. Refrigeration removes heat from the storage space. At the same time, insulation panels on the walls, ceiling, and floor stop outside heat from entering the cold room. Airflow then evenly distributes the cooled air, preventing warm spots from forming.

However, all three systems must work in balance. If insulation is weak, the refrigeration system has to work harder and uses more energy. In the same way, poor airflow leads to uneven cooling, even when the system runs properly.

3. The role of humidity control and continuous monitoring

Controlling temperature alone does not keep products safe. Humidity is also important. For example, low humidity dries out fresh produce, while high humidity can cause ice buildup or damage packaging, especially for medicines.

So, cold storage systems control moisture based on the product. Most facilities use dehumidifiers or controlled airflow to maintain the right level. At the same time, sensors keep checking temperature and humidity, and the system adjusts automatically.

This helps protect product quality and meet compliance needs. If conditions go outside the safe range, the system sends alerts so operators can take quick action.

4. Why cold storage is a key part of the cold chain

Cold storage plays a central role in the cold chain, which connects production, transport, and final delivery. It acts as a stable holding point where products remain safe until they move to the next stage. However, if temperature control fails at this stage, the entire batch can be affected. For most businesses, this directly impacts product reliability, supply consistency, and overall profitability.

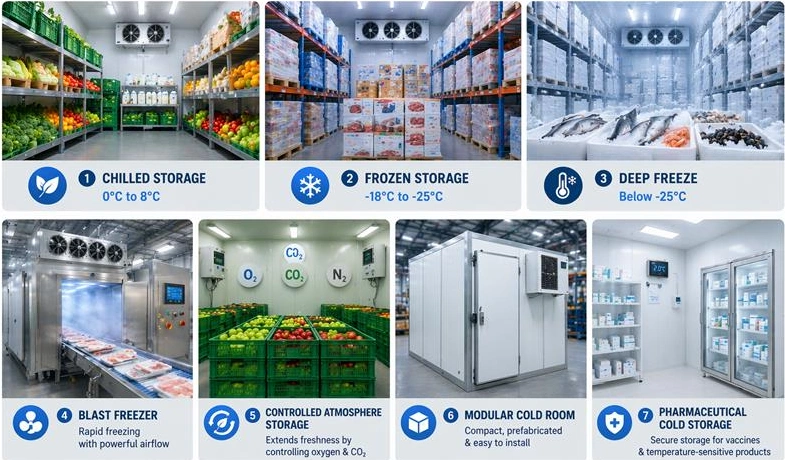

What Are the Main Types of Cold Storage Facilities?

1. Chilled cold storage

Chilled storage operates between 0°C and 8°C, keeping products fresh without freezing. Businesses use it to store fruits, vegetables, dairy products, beverages, and ready-to-eat foods. Therefore, most retail supply chains and distribution centers rely on this type for daily operations.

2. Frozen cold storage

Frozen storage maintains temperatures between -18°C and -25°C and stores products that need long-term preservation, such as meat, processed food, and ice cream. It uses thicker insulation and stronger refrigeration systems. As a result, it consumes more energy than chilled storage.

3. Deep-freeze cold storage

Deep-freeze storage operates at temperatures below -25°C and supports products that require very low temperatures for extended periods. It is used for certain seafood, export goods, and sensitive biological materials. In such cases, stable low temperatures help prevent product degradation.

4. Blast freezer

A blast freezer rapidly cools products to the required temperature within a short time. It does not store products for long periods. Instead, it prepares them before moving them into frozen storage. This process protects product texture and quality, especially in food processing.

5. Controlled atmosphere cold storage

Controlled atmosphere storage adjusts oxygen, carbon dioxide, and nitrogen levels along with temperature. It is mainly used for fresh produce. As a result, it slows the natural ripening process and extends shelf life beyond the normal chilled storage period.

6. Modular cold rooms

Modular cold rooms use prefabricated panels that assemble on-site. You can expand or relocate them as your operations grow. Therefore, many retail stores, restaurants, and small processing units prefer this option for faster setup and flexibility.

7. Pharmaceutical cold storage

Pharmaceutical cold storage handles medicines, vaccines, blood products, and other sensitive materials. It follows strict regulatory standards and maintains stable conditions at all times. In addition, it uses backup systems, continuous monitoring, and detailed temperature records to ensure safety and compliance.

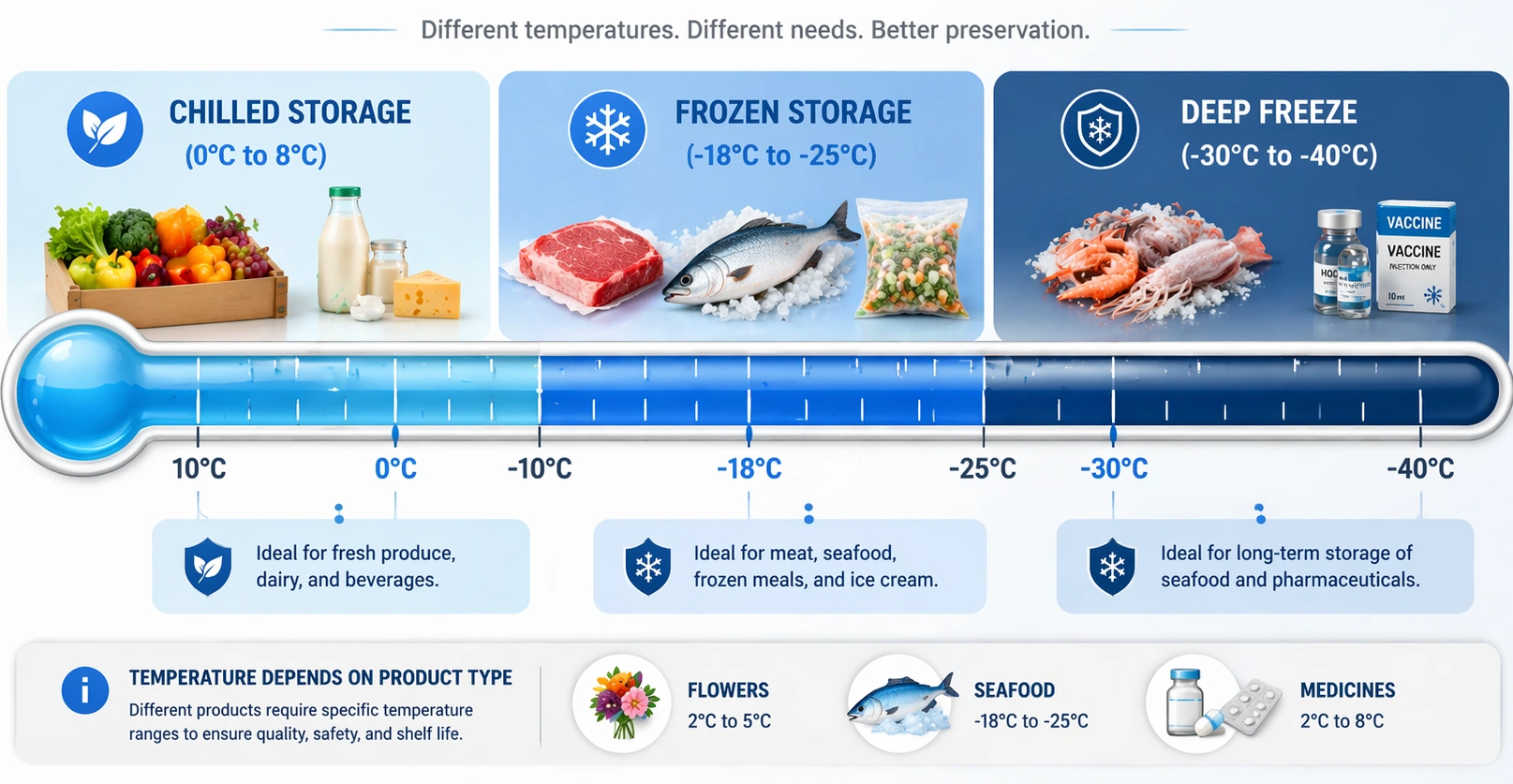

What Are the Temperature Ranges Used in Cold Storage?

1. Chilled storage temperature range (0°C to 8°C)

Chilled storage keeps perishable goods fresh without freezing them. It operates between 0°C and 8°C and is suitable for products such as fruits, vegetables, and dairy. The temperature must remain stable, as even small changes can accelerate spoilage, especially in sensitive produce.

2. Frozen storage temperature range (-18°C to -25°C)

Frozen storage works between -18°C and -25°C and supports long-term preservation. This range is widely used for meat, fish, and ready-to-eat food. It slows down bacterial activity and helps maintain product quality. To hold this temperature, you need proper insulation and a reliable refrigeration system.

3. Deep freeze and ultra-low temperature storage (-30°C to -40°C)

Deep-freeze storage operates at temperatures below -30°C and handles products that require very low temperatures for extended periods. It is used for seafood exports, long-distance transport, and some pharmaceutical products. In special cases, ultra-low freezers go even lower for research and medical use.

4. How temperature selection depends on product type

You should always select temperature based on the product, not convenience. For example, cut flowers need around 2°C to 5°C, while seafood may need -30°C or lower. If you store different products in one space, temperature conflicts can occur. So, group products by required temperature to avoid energy loss or product damage.

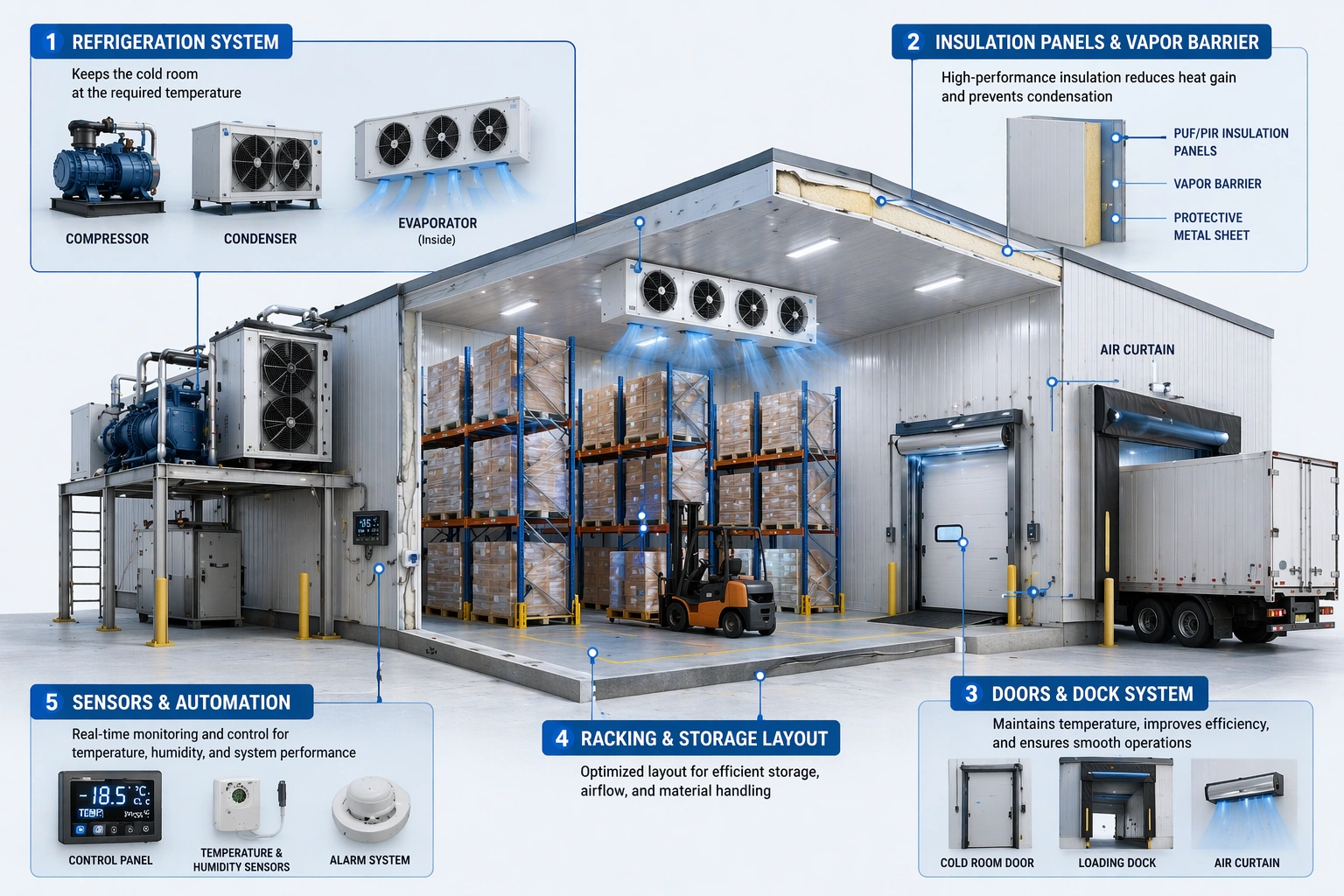

What Are the Key Components of a Cold Storage System?

1. Refrigeration equipment: compressor, condenser, and evaporator

Refrigeration equipment forms the core of a cold storage system. The compressor circulates the refrigerant, the condenser releases heat outside, and the evaporator cools the storage space. These parts must properly match your heat load. If you choose undersized equipment, it runs continuously and wears out faster. Proper sizing helps reduce breakdowns and improve system life.

2. Insulation panels, floors, and vapor barriers

Insulation protects the cold room from outside heat and moisture. Panels like PUF or PIR create a sealed thermal layer, while vapor barriers stop moisture from entering the walls and forming ice. If moisture enters, it weakens insulation over time. So, good insulation not only saves energy but also maintains long-term performance.

3. Doors, dock systems, and air curtains

Doors and loading areas directly affect temperature control. When doors remain open, heat enters quickly and disrupts the internal environment. High-speed doors, dock systems, and air curtains help reduce heat entry. They maintain stable conditions, especially during frequent loading and unloading.

4. Racking, storage layout, and internal handling systems

Storage layout affects both space use and operations. Cold storage space is expensive, so you should use vertical space effectively. Racking systems help store more goods within the same area. At the same time, proper layout ensures smooth forklift movement and reduces handling delays.

5. Sensors, alarms, and automation controls

Sensors and control systems maintain stable conditions inside the facility. They continuously track temperature and humidity and alert operators if conditions change. Automation systems adjust cooling based on demand. This reduces manual errors and helps maintain product quality and compliance.

What Factors Affect Cold Storage Design?

• Site selection and building layout planning: Choose a location with reliable power and highway access. Separate unloading areas from cold zones to reduce heat entry and improve logistics flow and transport efficiency.
• Product flow, loading, and unloading zones: Design direct movement from truck to cold zone. Provide wide staging areas to reduce delays, avoid heat exposure, and maintain product quality during handling.
• Heat load calculation and cooling capacity planning: Calculate heat from walls, products, and equipment. This ensures correct system sizing, avoids energy waste, and prevents performance issues in daily operations.
• Insulation thickness and material selection: Select proper insulation based on temperature and climate. Good insulation blocks heat entry, improves efficiency, and reduces long-term operating and maintenance costs.
• Airflow design and humidity control: Ensure proper air circulation across all racks. Maintain spacing for airflow to avoid warm spots and ensure uniform cooling for all stored products.
• Floor design, drainage, and moisture protection: Use proper floor insulation to prevent soil freezing and structural damage. Good drainage and moisture control help maintain building strength over time.
• Safety, compliance, and operational access: Include safety features like emergency exits and proper lighting. Ensure easy access for maintenance to support safe operations and meet compliance requirements.

What Are the Key Engineering Considerations in Cold Storage Design?

• Transmission load, product load, and infiltration load: Identify all heat sources early. Heat enters through walls, products, and open doors. Controlling air entry with fast doors helps reduce cooling load.
• Pull-down rate and holding temperature: Cooling warm products requires high energy. Once cooled, maintenance needs less energy. Separate cooling zones from storage areas to reduce system load.
• Door openings, traffic movement, and energy loss: Frequent movement and door openings increase heat entry. Plan layout to reduce traffic between zones and maintain stable temperatures.
• Refrigerant and compressor selection: Choose refrigerants based on system size and compliance needs. Ammonia suits large plants, while CO₂ and other options support long-term regulatory requirements.
• Energy-efficient design strategies: Use systems that adjust cooling based on demand. Combine efficient equipment with renewable energy sources to reduce operating costs over time.

Where Is Cold Storage Used Across Industries?

• Food industry: Food manufacturers use cold storage after production, during transport, and before retail. It helps maintain food safety and meet required standards.
• Agricultural storage: Farmers and traders store fruits and vegetables such as onions, potatoes, apples, and grapes in chilled or controlled storage. This helps them sell produce over a longer period, rather than immediately after harvest.
• Meat and seafood: Meat processing units use blast freezers immediately after processing, then shift products to deep-freeze storage for long-term use or export. Seafood exporters also maintain proper cold conditions to meet international requirements.
• Dairy products: Milk, cheese, butter, and yogurt need stable chilled storage. Even small temperature changes can affect quality and shelf life.
• Pharma storage: Medicines like vaccines, insulin, and biologics require strict temperature control. Businesses must follow GDP guidelines and record any temperature changes for compliance.
• Retail logistics: Large retail chains use cold storage hubs to collect chilled and frozen goods before sending them to stores.
• Export supply chain: Exporters must maintain proper cold conditions to meet the standards of importing countries. Inspection authorities check storage conditions before approving shipments.

What Are the Benefits of Cold Storage?

• Extended shelf life and reduced spoilage: Cold storage slows bacterial growth and natural product breakdown. This helps products last longer and reduces waste. For businesses, it means fewer losses and better cost control.
• Improved food safety and product quality: Stable temperatures stop harmful bacteria from growing. This reduces the risk of unsafe products, recalls, and penalties. It also helps maintain product quality.
• Inventory stability and supply chain efficiency: Cold storage helps businesses store products for longer periods. This enables better purchase planning and reduces reliance on urgent sourcing during supply disruptions.
• Support for seasonal demand and bulk storage: Farmers and businesses store products in bulk when prices are low. Later, they release stock when demand increases. This helps improve margins and better manage supply.
• Compliance with regulatory standards: Businesses must meet storage requirements set by authorities such as the FSSAI, export agencies, and pharma regulators. Cold storage helps meet these standards and allows smooth operations in regulated markets.

What Challenges Are Faced in Cold Storage Design and Operations?

• Energy costs: Cold storage systems run continuously and account for a large share of total operating costs. If the design or equipment is inefficient, energy bills rise quickly, reducing profit margins.
• Temperature risks: Power cuts, equipment failures, or poor door control can disrupt temperature control. Even one such event can damage the entire stored stock, especially in pharma or export operations.
• Moisture issues: Moisture can enter through gaps, form condensation, or create frost on cooling equipment. Over time, this weakens insulation and increases energy use.
• Maintenance needs: Refrigeration systems need regular maintenance to run properly. If you delay maintenance, it can lead to equipment failure, gas leaks, and unexpected downtime.
• Compliance issues: Cold storage facilities must meet strict rules for food, pharma, and export use. If you ignore compliance during design, you may face higher upgrade costs later or lose business opportunities.

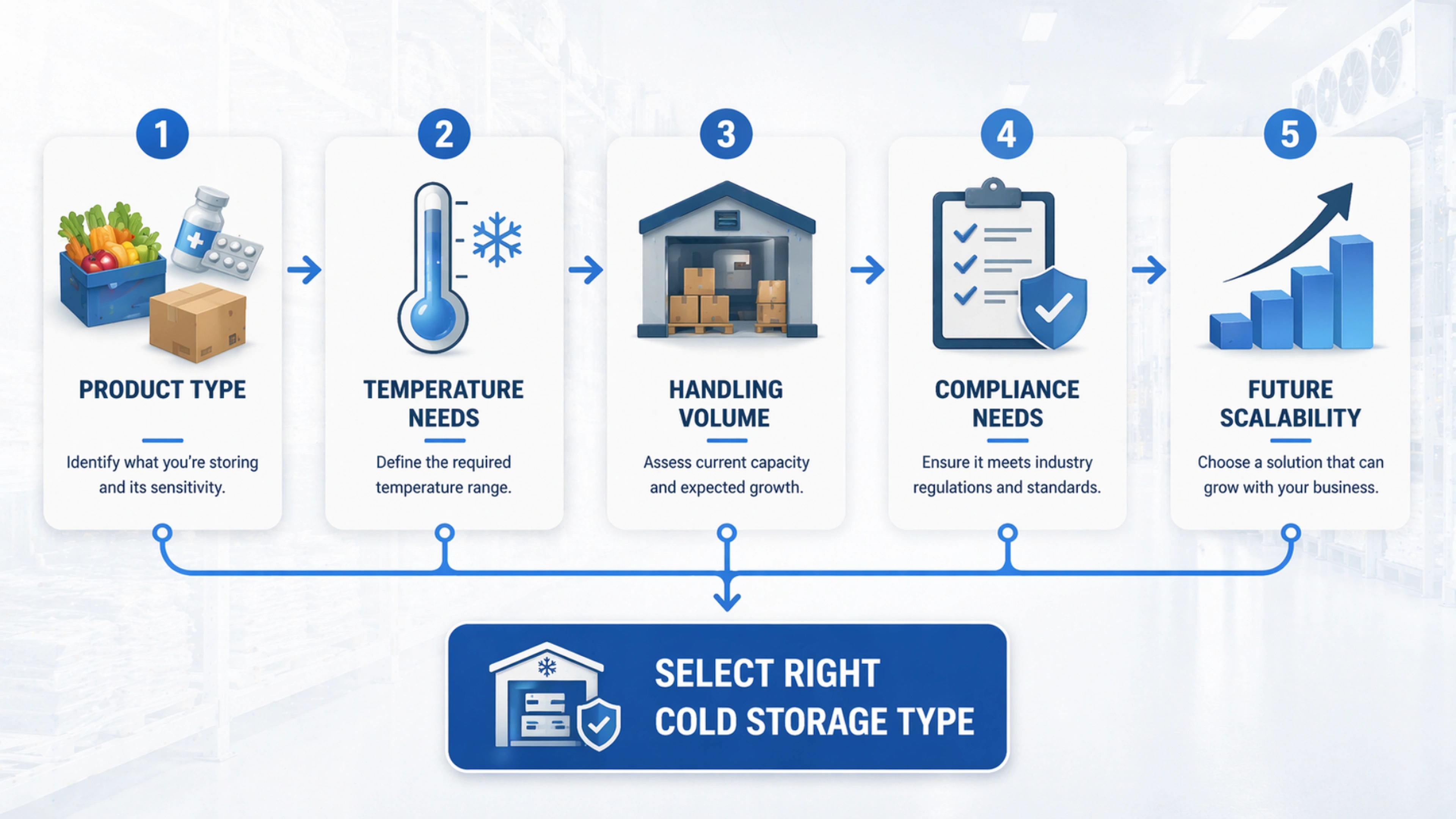

How Do You Choose the Right Cold Storage Type?

• Product type: Start with the product you want to store. It determines the required temperature, humidity level, and special features such as blast-freezing or controlled storage. Always design based on actual product needs, not general assumptions.
• Temperature needs: Select a storage type that matches the exact temperature required. For example, medicines must be stored according to strict guidelines, while food exports must meet the standards of the destination country.
• Handling volume: The amount of material you handle affects the design. Large operations need higher storage capacity, faster loading systems, and stronger cooling. Smaller setups can work with simpler systems.
• Compliance needs: If your business must follow food, pharma, or export rules, include those requirements from the start. Otherwise, you may face high upgrade costs later.
• Future scalability: If you expect growth, plan for expansion early. You can keep space for future storage, add more cooling systems, or design the structure for easy extension.

Conclusion

Cold storage is not just about keeping products cold. It is a system in which product type, temperature requirements, compliance, and daily operations must work together. If these do not match, the facility will either fail to perform or cost too much to run.

The right approach starts with understanding your product and its exact storage conditions. A proper heat load study and clear temperature planning help guide every design decision. This includes equipment size, insulation, and layout.

Before you move ahead, review your requirements carefully and consult a specialist. A well-planned cold storage facility protects product quality, controls operating cost, and supports long-term business growth.
