Pre Engineered Buildings

Pre-Engineered Buildings | PEB Structure Manufacturer

Pre engineered buildings are becoming a preferred construction method across India due to increasing industrialization and infrastructure growth. With the expansion of logistics parks, warehouses, and manufacturing units, businesses are increasingly looking for faster and more efficient building solutions that reduce construction timelines without compromising structural reliability.

KMS Technologies provides pre-engineered building solutions tailored for industrial and commercial applications. The company offers complete turnkey services, including design, manufacturing, and on-site installation. With a single point of responsibility, each project is executed in a well-planned and coordinated manner from initial concept to final completion.

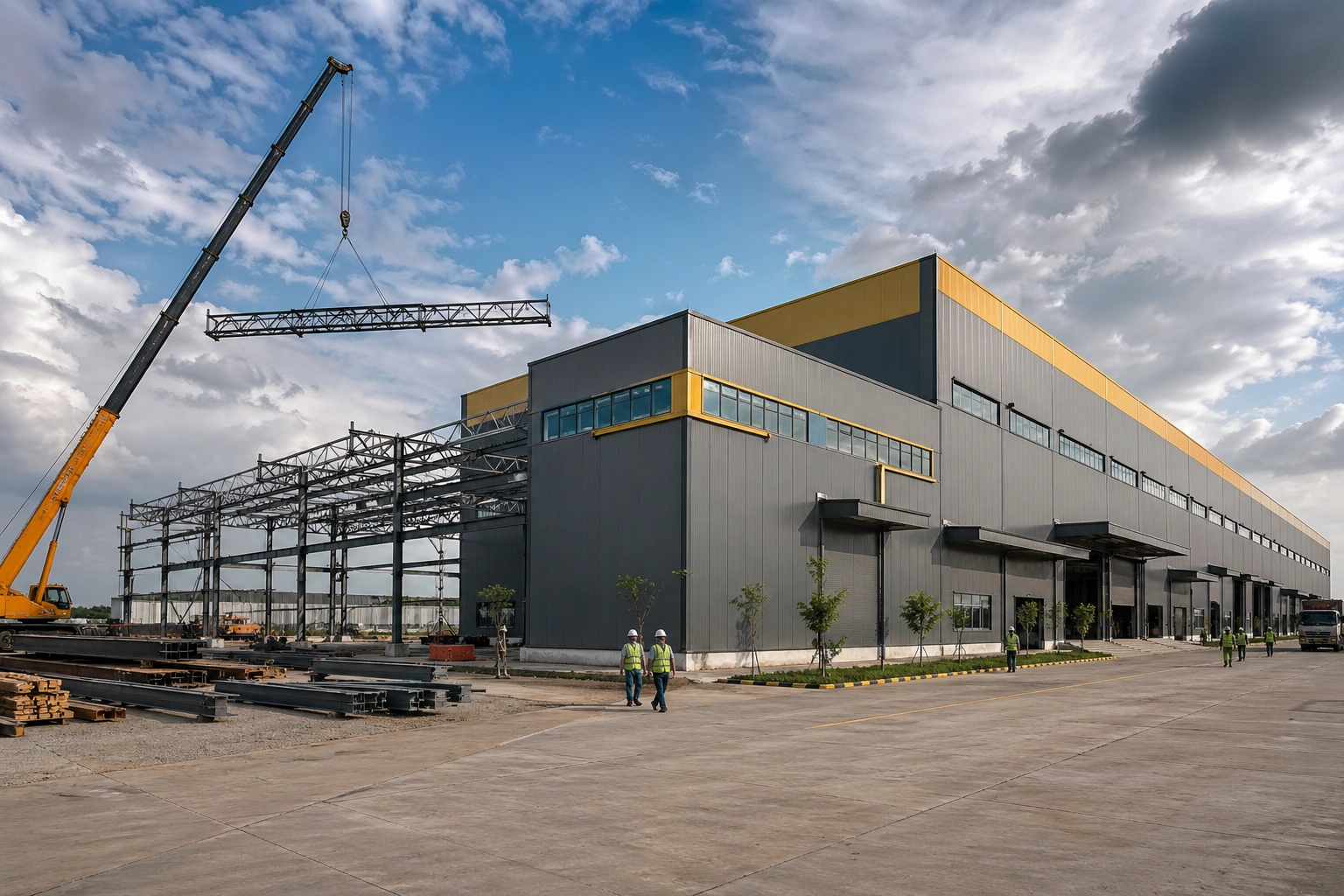

Pre engineered building steel frame structure under construction

What Are Pre-Engineered Buildings (PEB)?

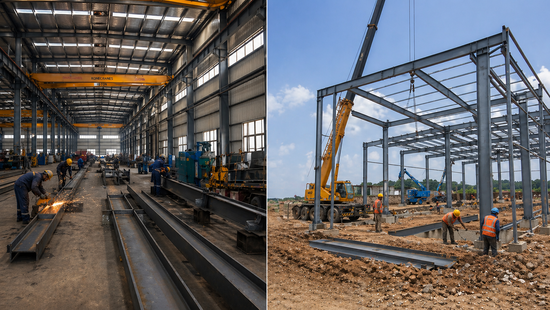

Pre-engineered buildings (PEB) are steel structures designed and fabricated in a factory, then transported to the site for assembly. By using standardized components, PEB structures ensure consistent quality, faster installation, and improved efficiency compared to conventional construction methods.

PEB structures are commonly used in modern construction due to their speed, cost efficiency, and design flexibility. A typical PEB structure includes primary members like columns and rafters, along with secondary members such as purlins and girts, creating a stable and adaptable building system.

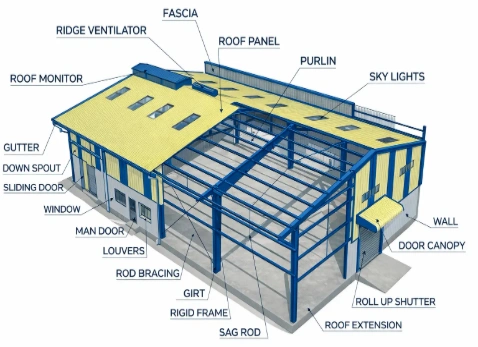

Pre engineered building structure diagram showing primary and secondary members

Key Components of Pre-Engineered Buildings

Primary Members

Primary members form the main load-bearing frame of the pre-engineered buildings. These include tapered or straight steel columns, rafters, and knee braces that carry the roof and wall loads down to the foundation. Primary members are designed to handle major structural loads such as dead load, live load, and environmental forces.

  • checkmark Columns: vertical structural supports transferring load to foundation
  • checkmark Rafters: horizontal roof members supporting roofing system
  • checkmark Knee braces: angled supports connecting columns and rafters to improve frame stability

Secondary Members

Secondary members are installed between primary members to support roofing and wall systems. They help distribute loads evenly, improve structural alignment, and provide fixing points for cladding materials. Secondary members also contribute to the overall stability of the building under operational conditions.

  • checkmark Purlins: Horizontal members placed on the roof that support roof sheets and transfer loads to rafters.
  • checkmark Girts: Wall-mounted horizontal sections that support wall cladding and improve structural strength.
  • checkmark Eave Struts: Located at the junction of roof and wall, these members help in load transfer and panel alignment.

Roof and Wall Panels

Roof and wall panels act as the outer skin of the building, protecting the PEB structures from environmental conditions such as rain, heat, and wind. These panels also play a key role in insulation, internal temperature control, and overall building durability depending on the material selected.

  • checkmark Profile Metal Sheets: standard galvanized or color coated sheets used for basic industrial cladding
  • checkmark PUF Sandwich Panels: panels with polyurethane core offering high thermal insulation and energy efficiency.
  • checkmark Rockwool Panels: fire-resistant panels suitable for facilities with high safety requirements
  • checkmark Glass Wool Panels: lightweight insulation panels used for temperature control and acoustic performance

Bracing Systems

Bracing systems are essential for maintaining the structural stability of the PEB building, especially against lateral forces such as wind pressure and seismic activity. They prevent deformation, ensure proper alignment, and enhance the load-resisting capacity of the PEB structures.

  • checkmark Rod Bracing: steel rods used to resist tension forces and stabilise structural frames
  • checkmark Cable Bracing: flexible bracing system that distributes lateral loads efficiently across the structure
  • checkmark Portal Bracing: rigid frame-based bracing used in heavy-duty structures for additional strength

Accessories

Accessories are supporting components that improve the functionality, safety, and usability of the PEB building. While they are not primary structural elements but accessories plays an important role in ensuring proper ventilation, lighting, drainage, and operational efficiency.

Accessories include elements such as roof ventilators, skylights, turbo vents, gutters, downpipes, louvers, and doors, which help create a comfortable and efficient working environment inside the PEB building.

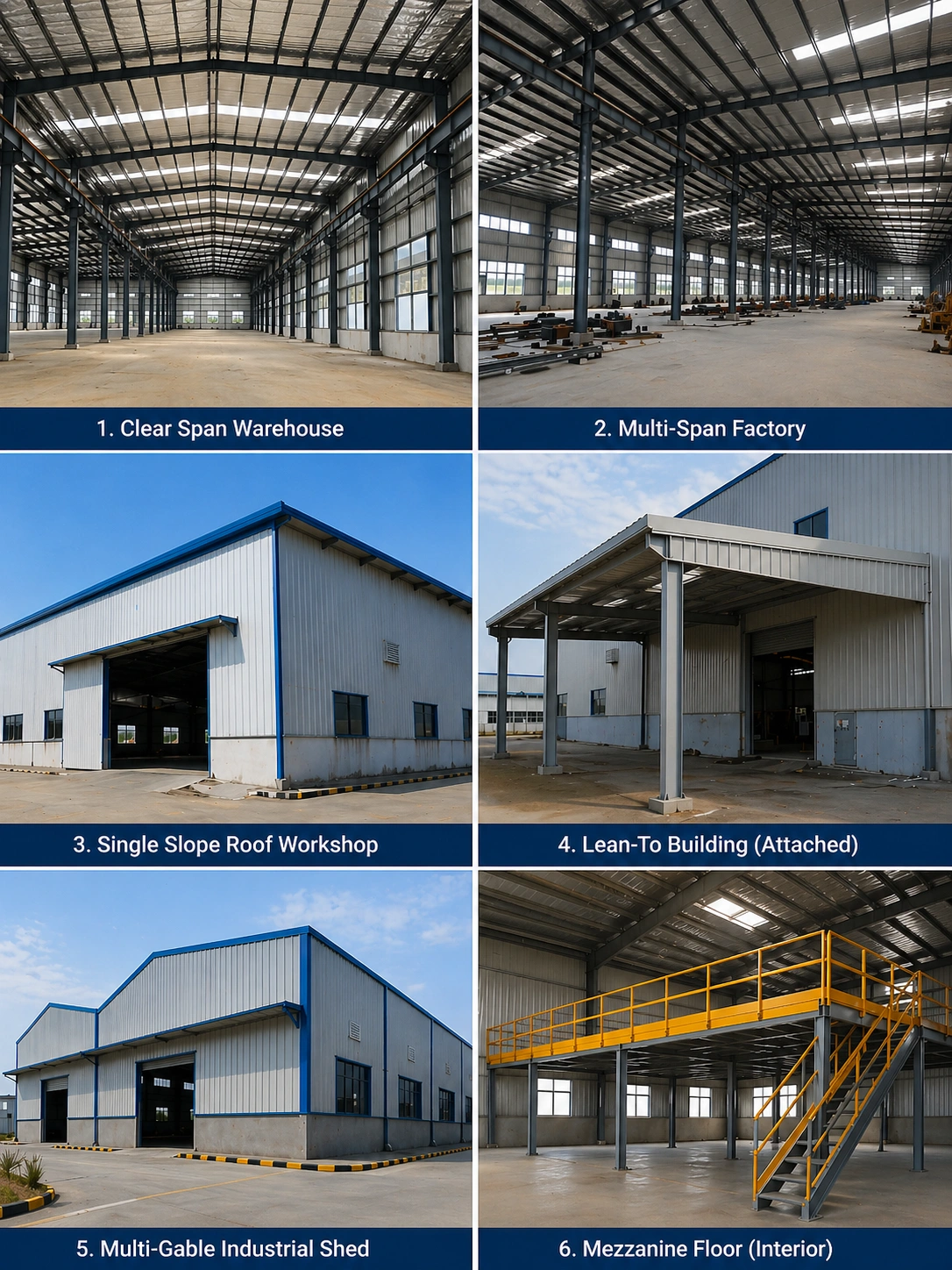

Types of Pre-Engineered Buildings in India

Clear Span PEB Buildings

Clear span buildings eliminate internal columns, allowing you to utilise the entire floor area without obstruction. This design supports smooth material movement, equipment placement, and flexible layout planning. Industries widely use these PEB structures for warehouses, manufacturing units, and large storage facilities.

Multi-Span PEB Buildings

Multi-span PEB buildings use multiple column lines to support wider structures efficiently. This configuration helps you distribute loads better and optimise material usage for large-scale projects. You can use these PEB Structures for factories, logistics hubs, and facilities requiring extended covered areas with structural support.

Single Slope PEB Buildings

Single slope PEB buildings use a single inclined roof, making them suitable for smaller structures and utility applications. You can install them where drainage direction control is important. These PEB structures work well for workshops, storage units, and auxiliary industrial spaces.

Lean-to PEB Buildings

Lean-to PEB buildings attach directly to an existing structure, allowing you to expand your facility without constructing a separate building. You can use them for additional storage, covered work areas, or operational extensions. This option helps you utilise available space efficiently with minimal structural modification.

Multi-Gable PEB Structures

Multi-gable PEB structures use multiple roof slopes to improve ventilation, natural lighting, and water drainage. You can design these buildings for large industrial facilities that require better internal environment control. They also help in segmenting large spaces for different operational zones.

Mezzanine PEB Structures

Mezzanine PEB structures add intermediate floors within the building, allowing you to maximise vertical space usage. You can use these floors for storage, offices, or light operations without expanding the building footprint. This solution helps improve space efficiency in warehouses and industrial units.

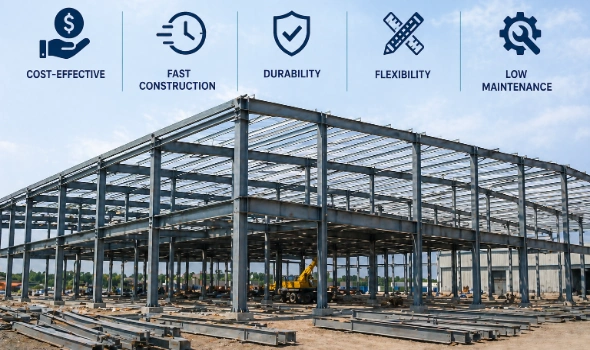

Advantages of Pre-Engineered Buildings

  • checkmark Faster Construction and Project Completion: Factory fabrication and pre-designed components reduce on-site work and accelerate project timelines.
  • checkmark Cost-Effective Building Solutions: Optimised material usage and reduced labour requirements help control overall construction costs.
  • checkmark Durability and Low Maintenance: Steel structures are resistant to environmental factors and require minimal maintenance over time.
  • checkmark Flexibility and Future Expansion: PEB structures can be easily modified or expanded to accommodate changing operational needs.
  • checkmark Consistent Quality Control: Manufacturing in controlled factory conditions ensures precision and uniform quality.

PEB Design and Engineering Considerations

Pre-engineered building design requires careful planning to ensure structural safety, operational efficiency, and compliance with standards. Factors such as load conditions, space utilisation, insulation, and regulatory requirements play a key role in overall building performance.

Load Considerations in PEB Design

PEB designing considers various load factors such as dead load, live load, wind load, and seismic forces. Proper load analysis ensures the structural integrity and ensures that the PEB structures remains stable and performs reliably under different environmental and operational conditions.

Clear Span Planning and Space Optimization in PEB Structures

The column spacing and bay depth are planned to maximise usable floor area while keeping the PEB buildings structurally efficient. Clear span design allows maximum usable floor space without internal obstructions. It supports efficient layout planning for warehouses, production units, and logistics operations requiring uninterrupted movement.

Insulation Options for Better Energy Efficiency in PEB Buildings

Insulation materials such as PUF panels, rockwool panels, and glass wool panels helps in regulating internal temperature. These panels improve energy efficiency and indoor comfort by controlling heat transfer and maintaining stable internal conditions. Proper insulation also enhances comfort and protects stored goods or equipment.

Compliance with Indian Building Codes and Standards

PEB structures are designed in accordance with established industrial standards such as IS 800 and other relevant building codes. Compliance ensures structural safety, reliability, and adherence to regulatory requirements.

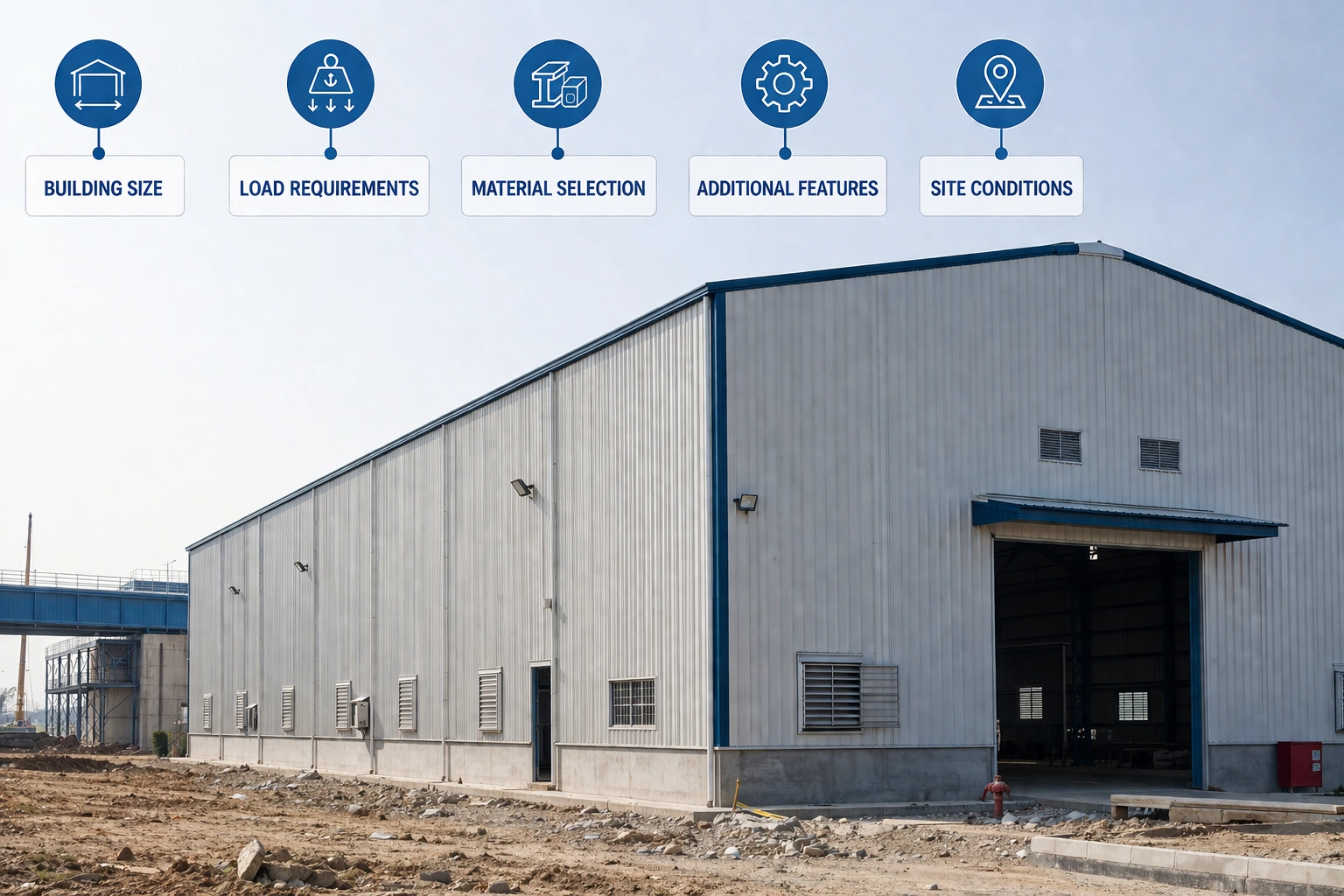

Factors Affecting the Cost of Pre-Engineered Buildings in India

The cost of a pre-engineered building depends on design and site-related factors. When you understand these elements, you can plan your budget more accurately and select configurations that optimise cost and reduce material wastage.

  • checkmark Building Size: Larger footprint and higher eave heights require more steel tonnage, directly increasing material and fabrication costs.
  • checkmark Load Requirements: Higher roof loads, crane loads, or seismic design requirements call for heavier structural sections and additional bracing.
  • checkmark Material Selection: The choice of cladding panels, insulation systems, and finish specifications significantly affects the overall cost per square meter.
  • checkmark Extra Features: Additions such as mezzanine floors, overhead crane beams, ventilation systems, and specialized doors add to the project cost.
  • checkmark Site Conditions: Difficult soil conditions, remote locations, or restricted site access can increase foundation costs and installation time.

Difference Between Pre-Engineered Buildings and Conventional Construction

Parameter Pre-Engineered Buildings Conventional Construction
Construction Time Faster execution Longer duration
Cost Control Predictable costs Variable costs
Material Usage Optimised usage Higher wastage
Design Flexibility Easily customisable Limited flexibility
Expansion Easy to expand Difficult to modify
Quality Control Factory controlled Site dependent

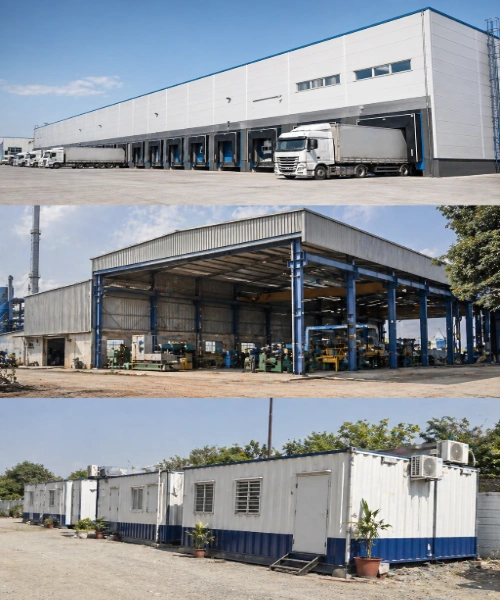

Applications of Pre-Engineered Buildings

Pre-engineered buildings are used across various sectors due to their flexibility, speed, and adaptability. PEBs support both permanent and temporary infrastructure requirements in industrial and commercial environments.

  • checkmark Prefabricated Schools: Rapidly deployable school buildings used for permanent or temporary educational facilities in urban and semi-urban locations.
  • checkmark Logistics and Warehousing Facilities: Large-span PEB warehouses are widely used by e-commerce, FMCG, and third-party logistics operators across India.
  • checkmark Cold Storage Units: Insulated PEB structures with PUF sandwich panels are used for temperature-controlled storage of food, pharmaceuticals, and perishable goods.
  • checkmark Banquet Halls: Clear span PEB structures provide column-free interiors suitable for banquet and event venues requiring open floor layouts.
  • checkmark Modular Buildings: Factory-built modular PEB buildings are used for offices, classrooms, clinics, and other facilities requiring fast deployment.
  • checkmark Modular Site Offices: Portable and relocatable PEB cabins are used as temporary offices on construction sites and industrial projects.
  • checkmark Industrial Sheds: PEB industrial sheds are used for manufacturing, fabrication, assembly, and storage operations across sectors.
  • checkmark Security Guard Cabins: Compact prefabricated steel cabins used as entry control points at industrial plants, warehouses, and gated facilities.
  • checkmark Portable Cabins: Relocatable PEB structures are used for accommodation, storage, and temporary operational facilities on project sites.

Why Choose KMS Technologies as your PEB Manufacturer

KMS Technologies delivers structured pre-engineered building solutions with a focus on coordinated execution and practical design. The approach is based on managing each stage of the project in a systematic and accountable manner.

  • checkmark Turnkey PEB Solutions: We manage the full project cycle from design and engineering through fabrication and on-site installation, providing single-point responsibility for your entire PEB project.
  • checkmark Custom Design Capability: Every building is engineered to your specific span, height, load, and usage requirements. avoiding standardised or off-the-shelf configurations.
  • checkmark Industry Experience: KMS Technologies has delivered PEB projects across manufacturing, warehousing, logistics, cold storage, and commercial sectors throughout India.
  • checkmark Quality Standards: Our fabrication processes follow IS 800 and relevant BIS standards, ensuring structural integrity and compliance across all projects.
  • checkmark End-to-End Execution: From initial site assessment and structural design to fabrication, supply, and installation, our team handles every phase so your project stays on schedule.

Our Related Services

Explore our complete range of pre-engineered building solutions

PEB steel warehouse industrial roofing and wall cladding system

Sandwich Roof and Wall Panels

Profiled metal sheets and insulated panel systems engineered for wind uplift resistance, water tightness, and long-term corrosion protection.

Discover Sandwich Panels
Standard frame type industrial shed steel skeleton under construction

Standard Frame Type

Conventional clear-span and multi-span rigid frames engineered for standard load conditions, providing predictable structural performance.

View Standard Frame Types
PEB structural design 3D modelling services for industrial buildings

Structural Designing

Comprehensive PEB structural design covering primary frames, wall systems, and load transfer mechanisms engineered to IS 800:2007 and IS 875 for safe, cost-efficient buildings.

Explore Structural Designing
Steel mezzanine systems installation inside industrial warehouse

Mezzanine Systems

Steel intermediate floor platforms engineered to IS 800 for warehouses, manufacturing plants, and logistics hubs — maximising vertical space.

Explore Steel Mezzanine Systems

Frequently Asked Questions

Pre engineered buildings are steel structures designed and fabricated in factories, then assembled at site. They use standardized components to reduce construction time, cost, and material wastage.

PEB structures use a combination of primary and secondary steel members that distribute loads efficiently. Components are pre-designed, manufactured, and bolted together at site for quick installation.

A PEB includes primary members like columns and rafters, secondary members like purlins and girts, roof and wall panels, bracing systems, and accessories such as doors and ventilators.

PEB offers faster construction, lower cost, and better flexibility compared to RCC. It reduces material waste and allows easy expansion, making it suitable for industrial and commercial use.

PEB cost in India depends on size, design, materials, and location. On average, it ranges from 1500 to 2500 rupees per square foot, depending on project requirements and specifications.

PEB construction usually takes 6 to 12 weeks for standard projects. Factory fabrication and quick on-site assembly help reduce overall project timelines significantly.

Industries such as manufacturing, logistics, warehousing, cold storage, agriculture, retail, and infrastructure widely use PEB due to speed, scalability, and cost efficiency.

PEB structures can support cranes when designed accordingly. Crane load, span, and capacity are considered during design to ensure safe operation and structural stability.

PEB structures are durable and safe when designed as per standards. Steel offers high strength, and proper coatings protect against corrosion, ensuring long-term performance.

A well-designed PEB structure can last 25 to 50 years or more. Proper maintenance, quality materials, and protective coatings help extend the building service life.

Engineers design PEB using load calculations based on wind and seismic zones. Bracing systems and structural connections ensure stability and compliance with codes like IS 800.

PEB structures allow easy expansion by extending bays or adding sections. The modular design supports future growth without major structural changes or downtime.

PEB pricing depends on building size, load requirements, steel grade, insulation, accessories, and site conditions. Design complexity also influences overall project cost.

Choose a manufacturer with design capability, fabrication setup, project experience, and turnkey execution. Check quality standards, past projects, and delivery timelines.

PEB uses optimized, factory-made components for faster assembly, while conventional steel buildings require more on-site fabrication, leading to longer timelines and higher costs.
