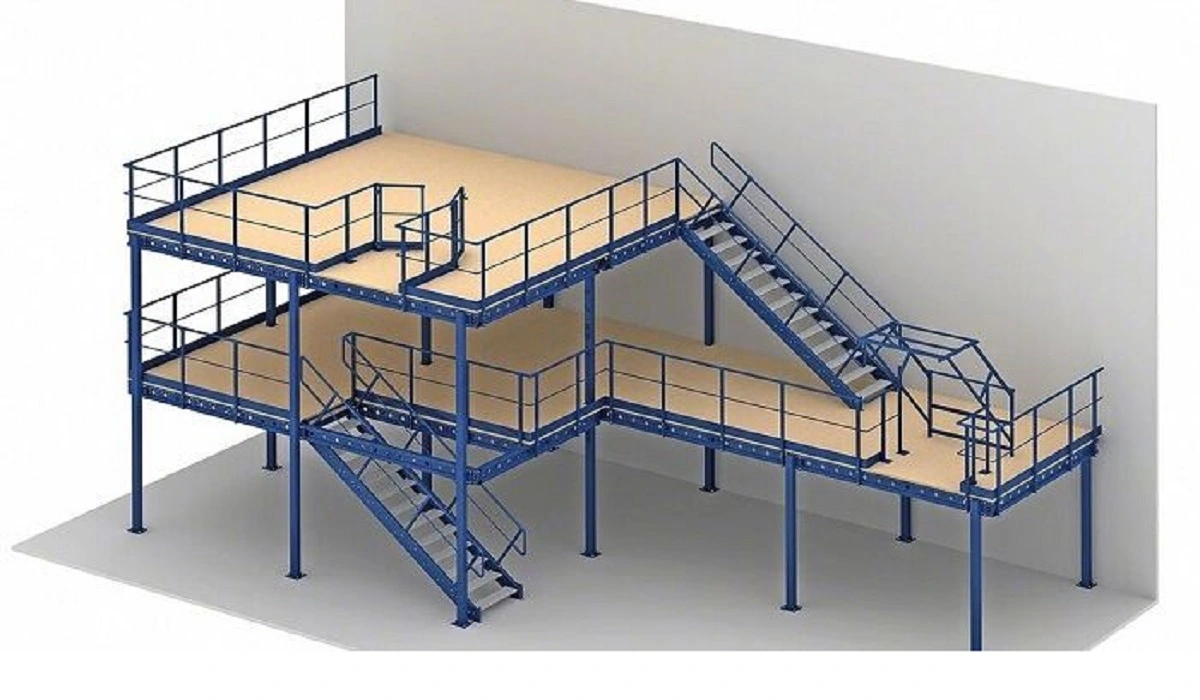

Steel Mezzanine Systems
Engineered Intermediate Floor Solutions That Maximise Space and Structural Performance
Introduction
Steel mezzanine systems create intermediate floor levels within industrial buildings, increasing usable space without expanding the building footprint. These systems function as secondary structural components, transferring imposed loads directly to primary frames or independent column foundations.
A properly engineered mezzanine platform must account for dead load, live load, impact load from material handling equipment, and vibration behavior under dynamic conditions. Structural design typically follows IS 800:2007 for steel design and IS 875 for load calculations. In seismic zones, engineers reference IS 1893 to ensure lateral stability.
Warehouse mezzanine systems enable facility managers to optimize vertical space in logistics hubs, manufacturing plants, and distribution centers. Unlike conventional RCC slabs, metal mezzanine systems offer faster installation, lighter structural weight, and future scalability.
Steel mezzanine systems integrate with pre-engineered building frameworks while maintaining structural independence where required. Proper connection detailing ensures safe load transfer without overstressing primary members.
Types of Steel Mezzanine Systems
Structural Steel Mezzanine Platform
A structural steel mezzanine platform consists of hot-rolled or built-up steel beams, secondary joists, steel decking, and bolted column connections. Engineers calculate bending moments and deflection limits according to IS 800 serviceability criteria.
These platforms support pallet loads, office floors, equipment bases, and conveyor lines. Designers optimize beam spacing and section depth to control vibration and minimize steel tonnage without compromising stiffness.
Load transfer occurs through columns to base plates and anchor bolts. Proper base design prevents punching shear and foundation overstress.
Mezzanine Racking System
A mezzanine racking system integrates storage racks with a structural floor deck above. Rack frames serve as load-bearing vertical members, while the decking distributes imposed loads.
This system suits high-density storage facilities. Engineers check combined axial compression and bending stresses in rack uprights to prevent buckling under eccentric loads.
Designers evaluate load paths carefully because rack-supported mezzanines transfer loads differently than free-standing platforms. Compliance with relevant rack design standards and IS 800 is essential.
Prefab Mezzanine Systems
Prefab mezzanine systems use factory-fabricated steel components that reduce site welding and improve dimensional accuracy.
Fabricators produce beams, columns, and decking modules under controlled conditions. Site teams assemble the system using bolted connections, enhancing erection speed and safety.
This approach improves quality control and ensures predictable structural performance.
Mezzanine Storage System
A mezzanine storage system focuses on material handling efficiency. It includes staircases, handrails, pallet gates, and loading points.
Designers calculate live loads based on storage classification. For example, heavy-duty storage areas require higher design loads than light archive storage zones.
Engineers must control deflection limits to prevent deck vibration during forklift or pallet truck movement.
Pre Engineered Mezzanine Systems
Preengineered mezzanine systems integrate directly with PEB primary frames. Designers coordinate mezzanine column placement with primary steel grids to avoid interference with bracing systems.
Structural analysis considers combined effects of gravity loads and lateral forces. Engineers verify connection detailing to ensure the mezzanine does not induce unintended stresses in rafters or columns.
Pre-engineered mezzanine systems maintain flexibility for future expansion, relocation, or load modification.
Key Benefits of Steel Mezzanine Systems
Steel mezzanine systems increase operational capacity without land acquisition or civil expansion. They provide structural efficiency through optimized steel sections and rational load paths. Engineers design them to achieve required strength and serviceability within controlled deflection limits.
Key Advantages:
-
Maximizes vertical warehouse space without increasing building footprint or altering the
primary structural grid.
-
Reduces construction time through prefabricated steel components and bolted assembly
methods.
-
Enables flexible load capacity design, from light-duty office floors to heavy pallet
storage zones.
-
Minimizes foundation load compared to RCC slabs due to lower self-weight.
-
Supports future modification, relocation, or integration with additional warehouse
mezzanine systems.
Industrial Applications
Steel mezzanine systems address operational requirements where vertical space is underutilized. Engineers design them for manufacturing, warehousing, and commercial facilities that demand structured load management.
Applications vary depending on operational intensity, material handling systems, and required floor loading standards. Designers evaluate usage patterns before finalizing section sizes and connection details.
Typical Applications:
-
Warehouse mezzanine systems for pallet storage, carton picking zones, and order
fulfillment platforms.
-
Production support floors for assembly lines, quality inspection areas, and machine
platforms.
-
Mezzanine storage systems in logistics hubs to segregate inventory categories.
-
Office floors within industrial sheds without RCC slab construction.
-
Conveyor and automation platforms integrated with material handling systems.
Why Choose Pre-Engineered Mezzanine Systems
Pre-engineered mezzanine systems align with modern industrial construction practices that prioritize structural efficiency and construction speed. Engineers design these systems using detailed structural analysis models that evaluate bending stress, shear capacity, and deflection performance.
Manufacturing under controlled factory conditions ensures consistent material quality and dimensional precision. Bolted connections reduce site risk and simplify inspection procedures.
Design compliance with IS 800, IS 875, and IS 1893 ensures the system meets national safety standards for strength, serviceability, and seismic performance.
Pre engineered mezzanine systems also support phased expansion strategies. Project managers can install additional bays or modify load capacity without major structural demolition.
For EPC contractors and procurement heads, this approach delivers predictable timelines, measurable structural performance, and optimized steel consumption.
