Standard Frame Type in Pre-Engineered Buildings

Structural Configurations That Define Performance, Efficiency, and Reliability in PEB Design

What Is a Standard Frame Type?

A standard frame type in pre-engineered buildings defines the structural configuration of primary rigid frames composed of columns and rafters designed to resist vertical and lateral loads through moment-resisting connections.

The frame geometry, span arrangement, and member profile determine load transfer behavior, steel optimization, and foundation reactions.

In engineered steel buildings, the standard frame type forms the backbone of the structure. It governs roof slope, bay spacing, crane integration, mezzanine support, and expansion feasibility.

Design references typically align with IS 800:2007, IS 875 (Parts 1–3) for dead, live, and wind loads, and IS 1893 for seismic design in Indian conditions. For global compliance, MBMA and AISC guidelines support structural behavior validation.

Standard Frame Type in Pre-Engineered Buildings

Why Standard Frame Type Matters in PEB Design

The selection of the standard frame type directly impacts structural efficiency, fabrication weight, erection speed, and lifecycle performance.

A well-chosen frame reduces bending moments, controls lateral deflection, optimizes section depth, and improves material utilization.

Improper frame selection leads to excessive steel tonnage, increased foundation size, crane vibration issues, or roof instability under wind uplift.

Rigid frame systems transfer loads from roof sheeting to purlins, from purlins to rafters, then to columns and foundations. Every configuration modifies this load path.

Therefore, frame selection must align with span width, crane capacity, mezzanine loads, future expansion, and site-specific wind or seismic zones.

Key Components of a Standard Frame Type

A standard frame system typically includes:

  • checkmark Tapered or built-up columns
  • checkmark Tapered rafters
  • checkmark Haunch connections
  • checkmark Base plates and anchor bolts
  • checkmark Bracing systems
  • checkmark Secondary members such as purlins and girts

Columns and rafters form moment-resisting joints. Haunch regions handle peak bending stresses near eaves. Tapered sections follow bending moment diagrams to reduce unnecessary steel weight while maintaining strength.

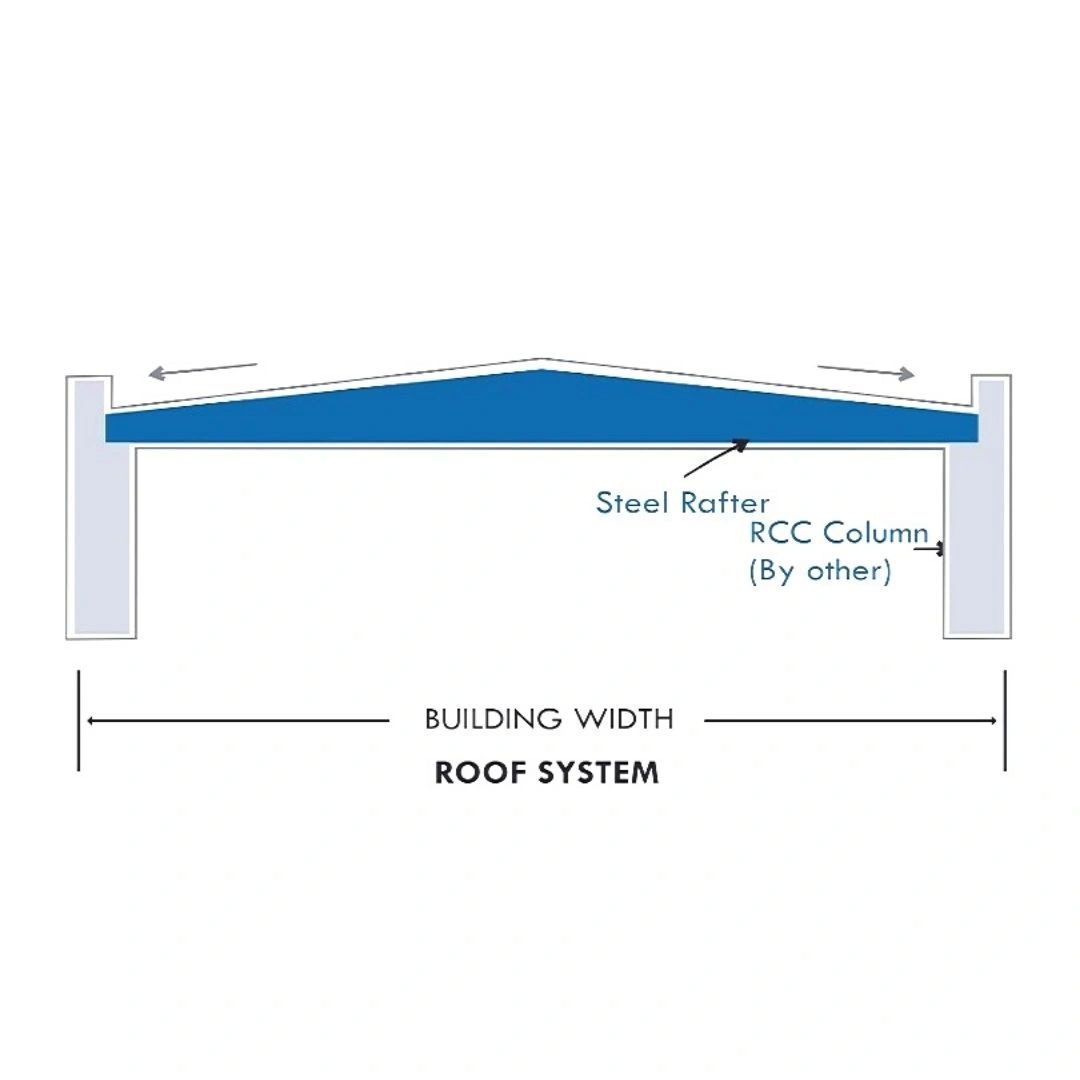

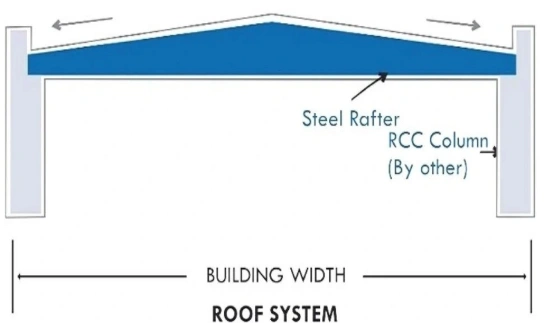

Rafter System

The rafter system carries roof loads and transfers them to columns through rigid joints.

Engineers design rafters as tapered built-up I sections to match bending moment variation. Maximum depth occurs near supports where moments peak.

This geometry reduces steel weight without compromising performance.

Rafters resist:

  • checkmark Gravity loads from roofing and live loads
  • checkmark Wind uplift and suction forces
  • checkmark Seismic inertial forces

Proper rafter slope improves drainage and reduces ponding risk, which IS 875 considers critical under heavy rainfall conditions.

Rafter System in Pre-Engineered Buildings

Multi Span Frame Systems

Multi span systems introduce interior columns to reduce rafter bending moments and optimize steel consumption for wider buildings.

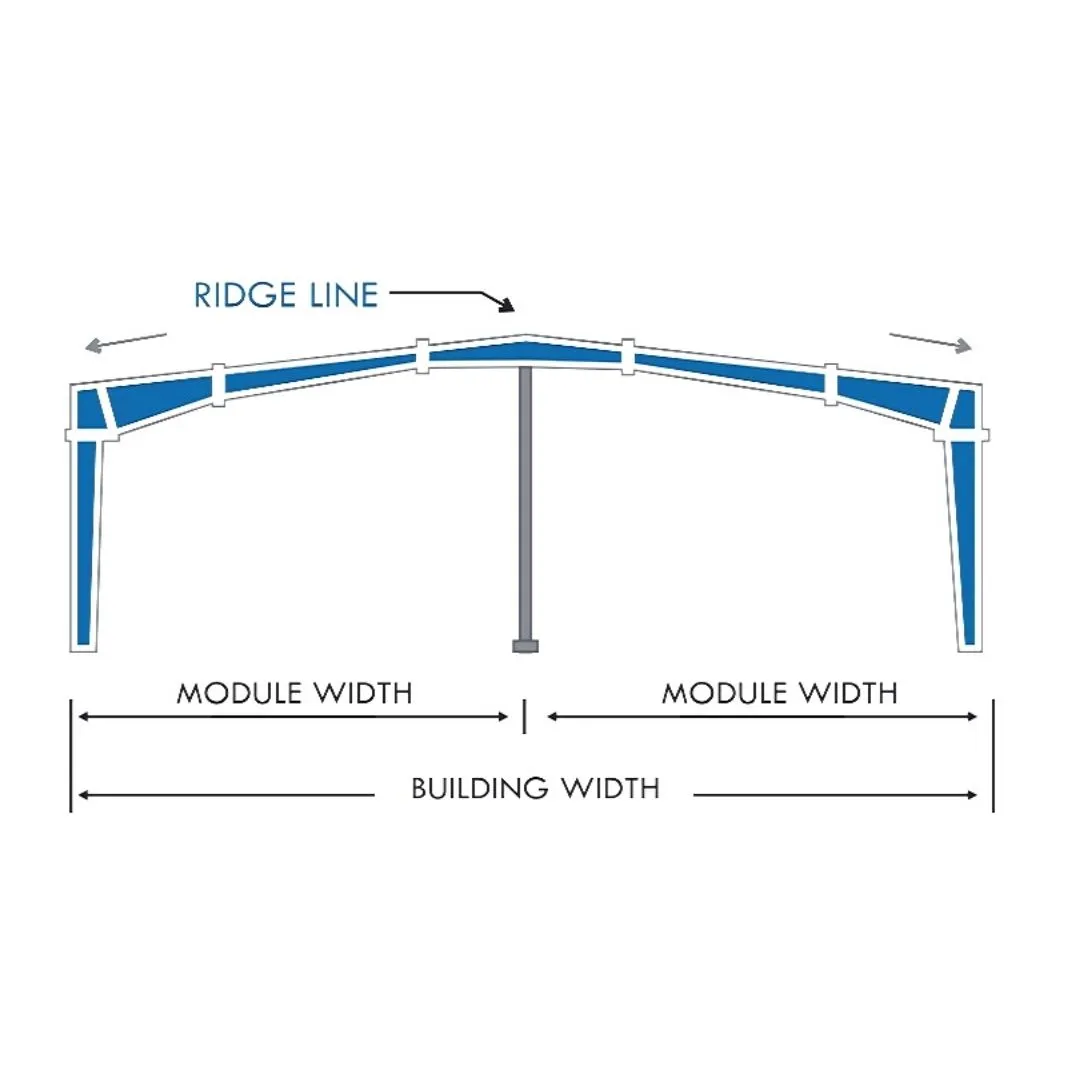

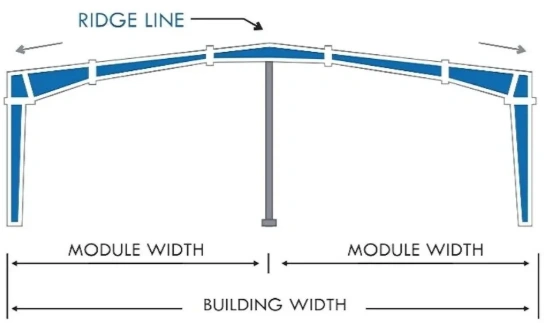

Multi Span I

Multi Span I consists of two spans separated by one interior column line.

This configuration reduces clear span length and decreases rafter depth.

It improves cost efficiency for medium-width industrial buildings where uninterrupted space is not mandatory.

Multi Span I Frame System

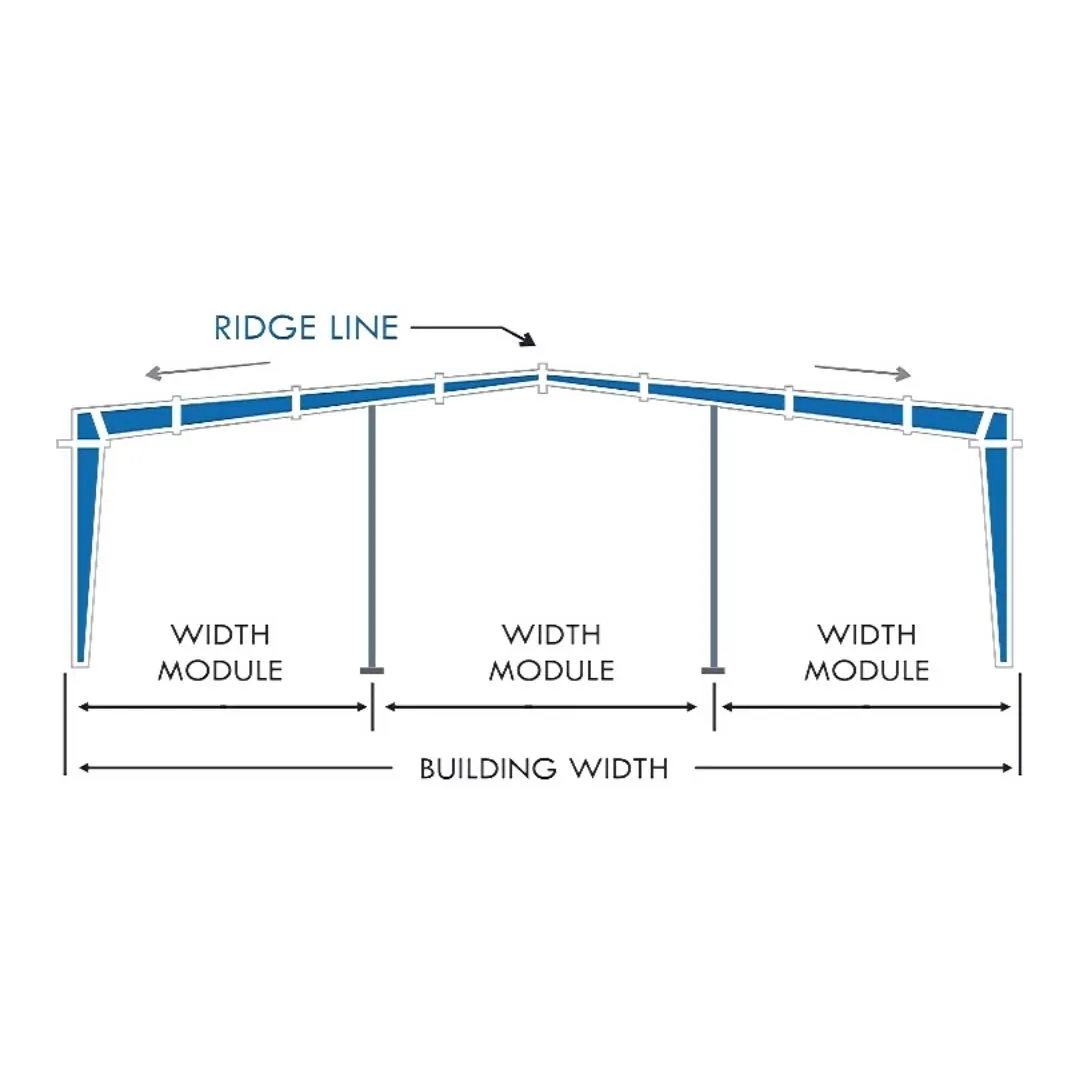

Multi Span II

Multi Span II includes two interior column lines creating three spans.

This layout suits large manufacturing plants where steel optimization takes priority over clear floor space.

Load distribution becomes more uniform, and foundation reactions decrease per column.

Multi Span II Frame System

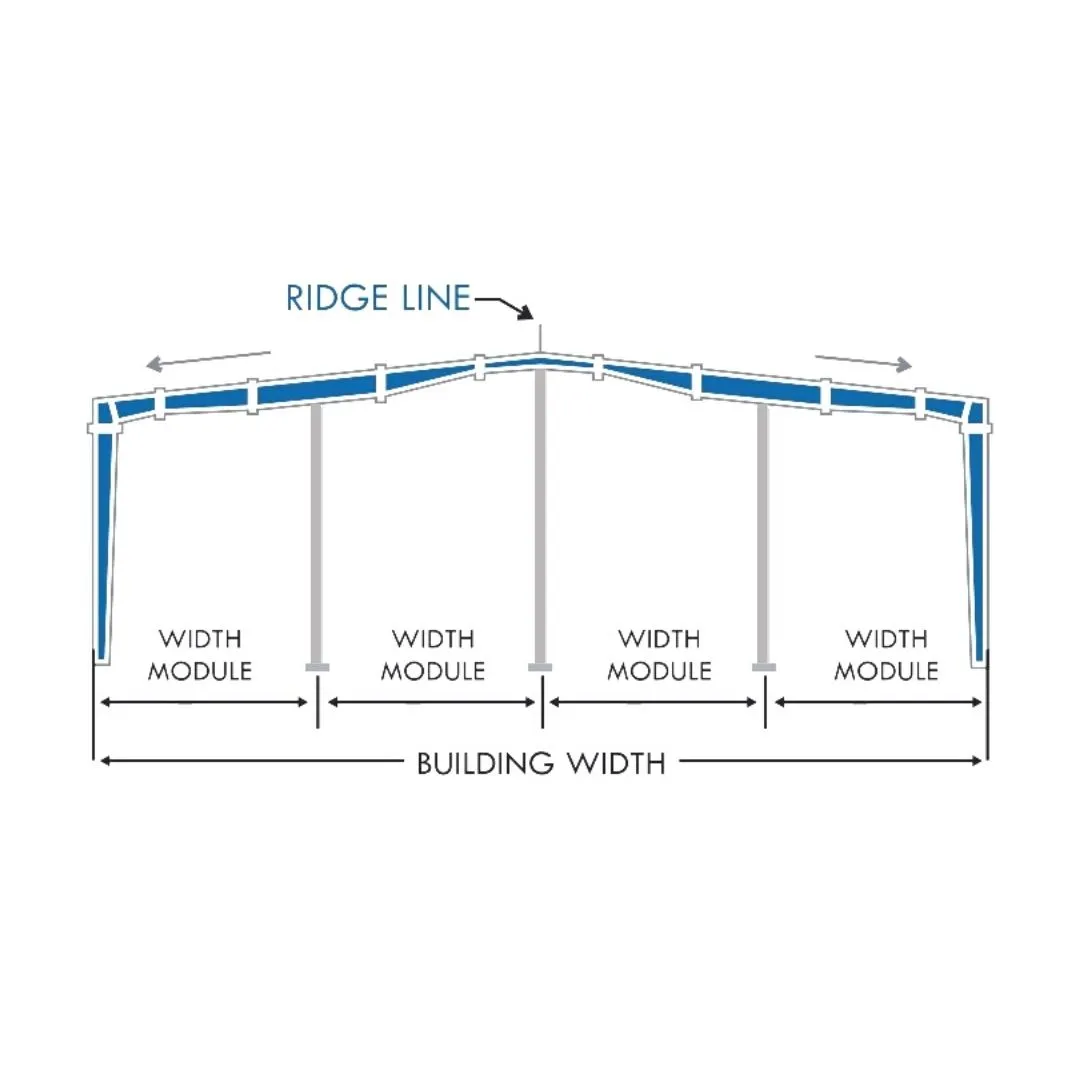

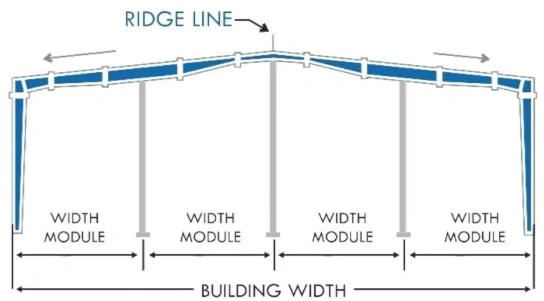

Multi Span III

Multi Span III integrates three interior column lines forming four spans.

Engineers use this system for extremely wide buildings such as logistics parks and large fabrication units.

Steel weight per square meter reduces due to shorter individual spans.

Multi Span III Frame System

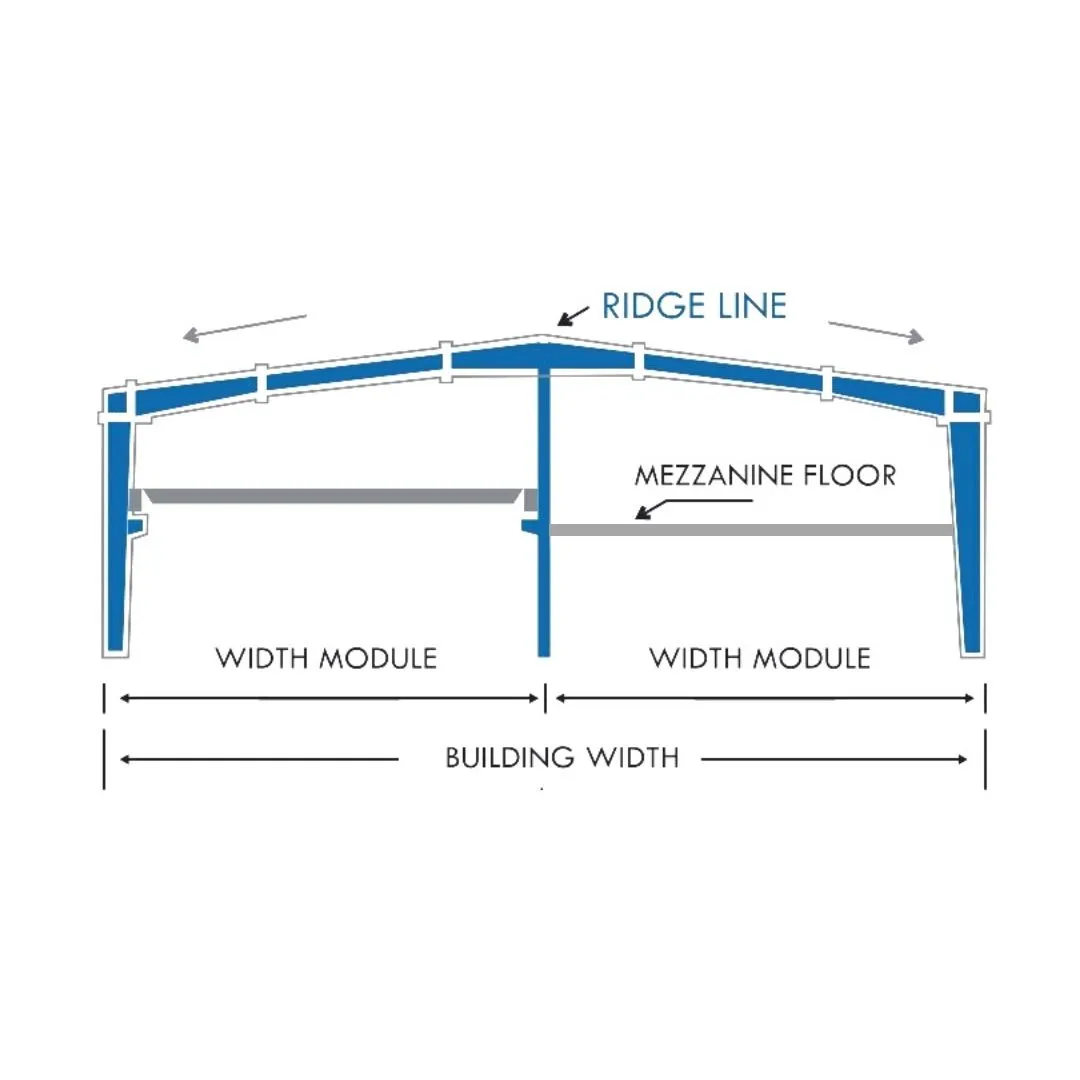

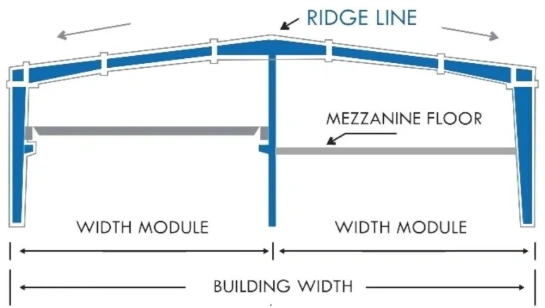

Multi Span I with Cranes & Mezzanines

This configuration integrates crane brackets and mezzanine beam connections into a two-span frame.

Crane loads introduce vertical wheel loads, lateral surge forces, and longitudinal braking forces as defined in IS 875 Part 5 and IS 807.

The frame must resist dynamic effects and serviceability deflection limits.

Mezzanine loads create additional gravity and vibration considerations. Engineers design column sections to resist combined axial and bending forces.

Proper load path planning prevents differential settlement and vibration amplification.

Multi Span I with Cranes and Mezzanines

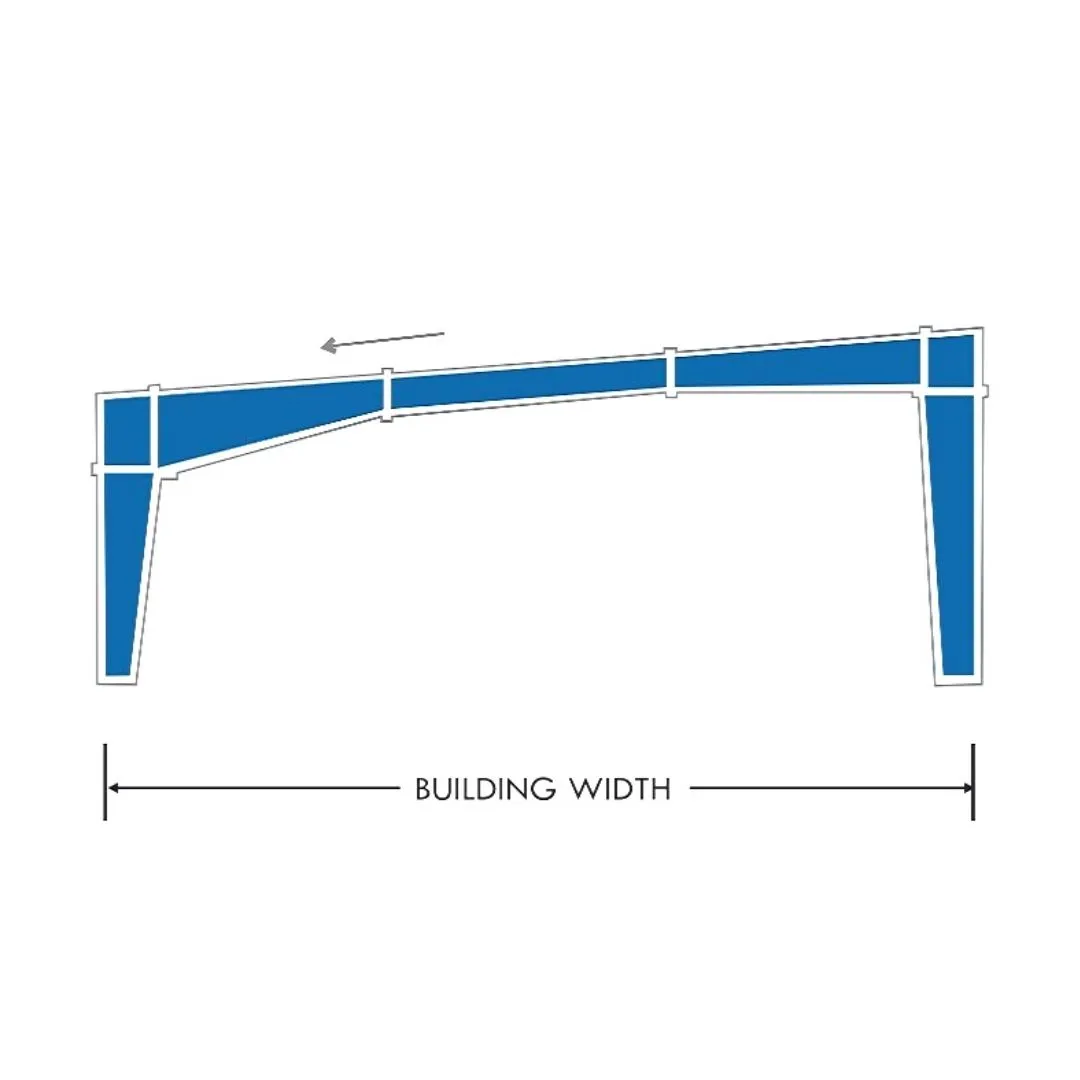

Mono Slope Frame System

Mono slope frames feature a single roof slope, typically used for smaller industrial units or expansion sheds.

The asymmetrical geometry alters moment distribution. One column experiences higher reaction forces due to slope direction.

Engineers use this system for:

  • checkmark Peripheral sheds
  • checkmark Utility blocks
  • checkmark Lean-to expansions

Drainage design remains critical to prevent localized ponding.

Mono Slope Frame System

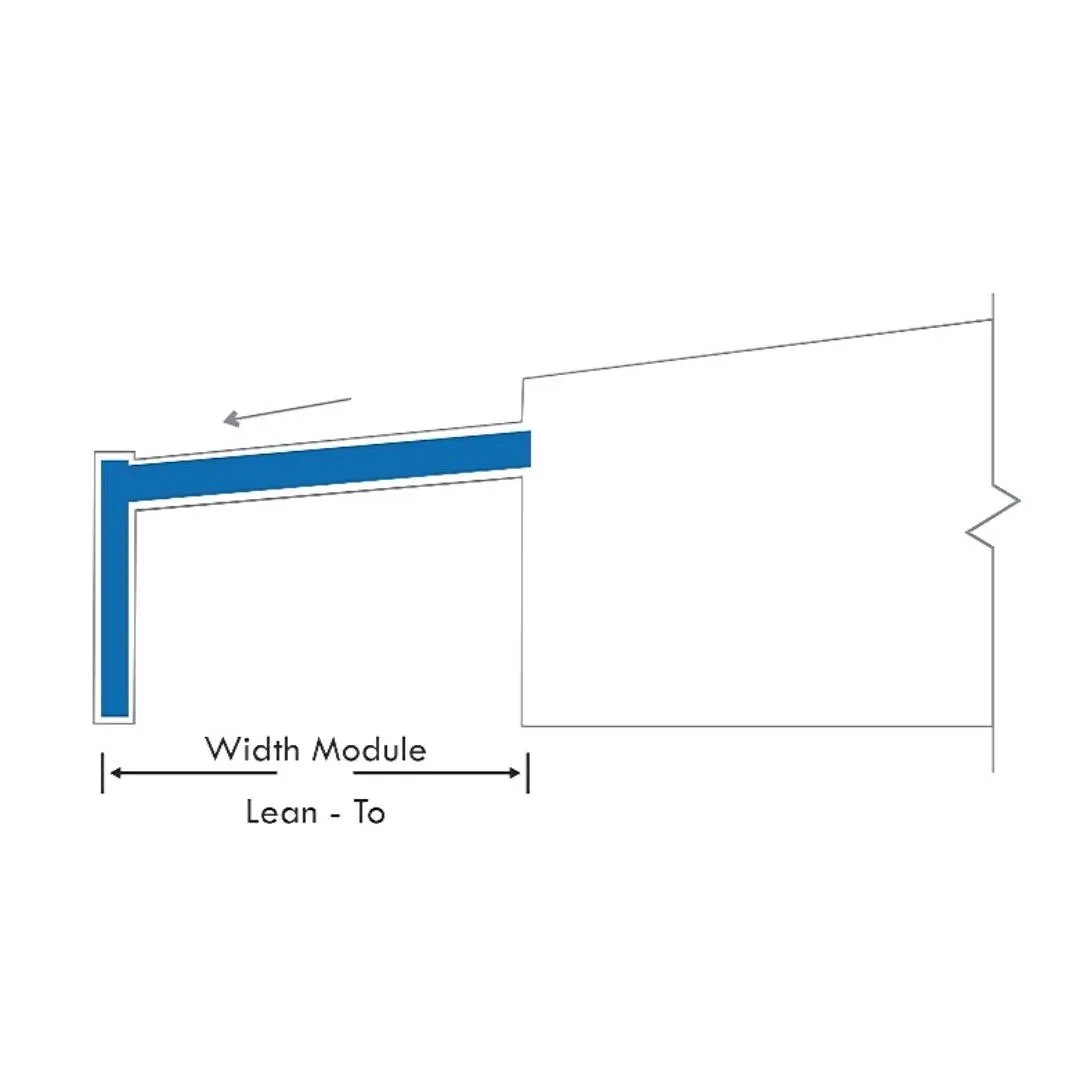

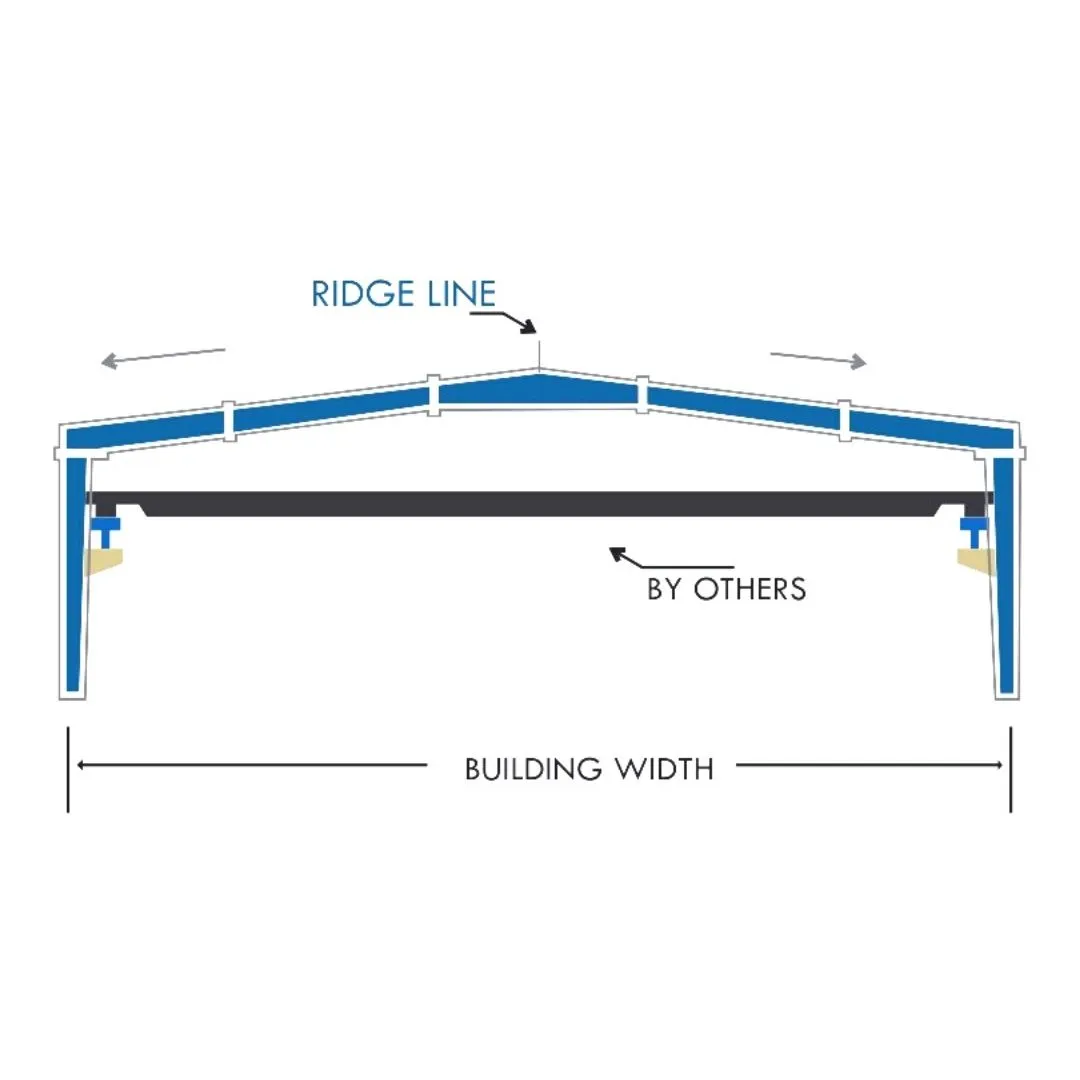

Clear Span with Crane and Lean-To

Clear span frames eliminate interior columns while supporting crane systems and side lean-to structures.

This design requires deeper rafters and stronger columns to resist high bending moments.

Crane surge forces and lateral drift control determine column sizing.

Lean-to frames connect through secondary framing without affecting the stability of the main rigid frame.

Clear Span with Overhead Crane Lean-To Frame Extension

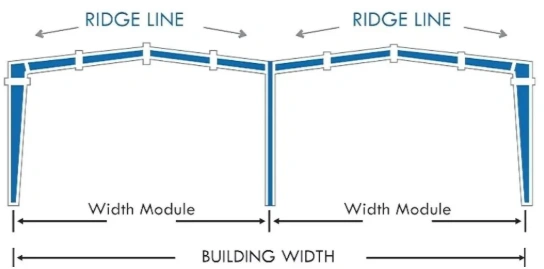

Multi Gable Frame System

Multi gable frames consist of adjoining clear span frames that share columns at intermediate lines.

Each gable operates structurally independently but shares support systems.

This configuration improves ventilation and daylight integration while allowing phased expansion.

Engineers ensure that expansion joints accommodate thermal movement.

Multi Gable Frame System

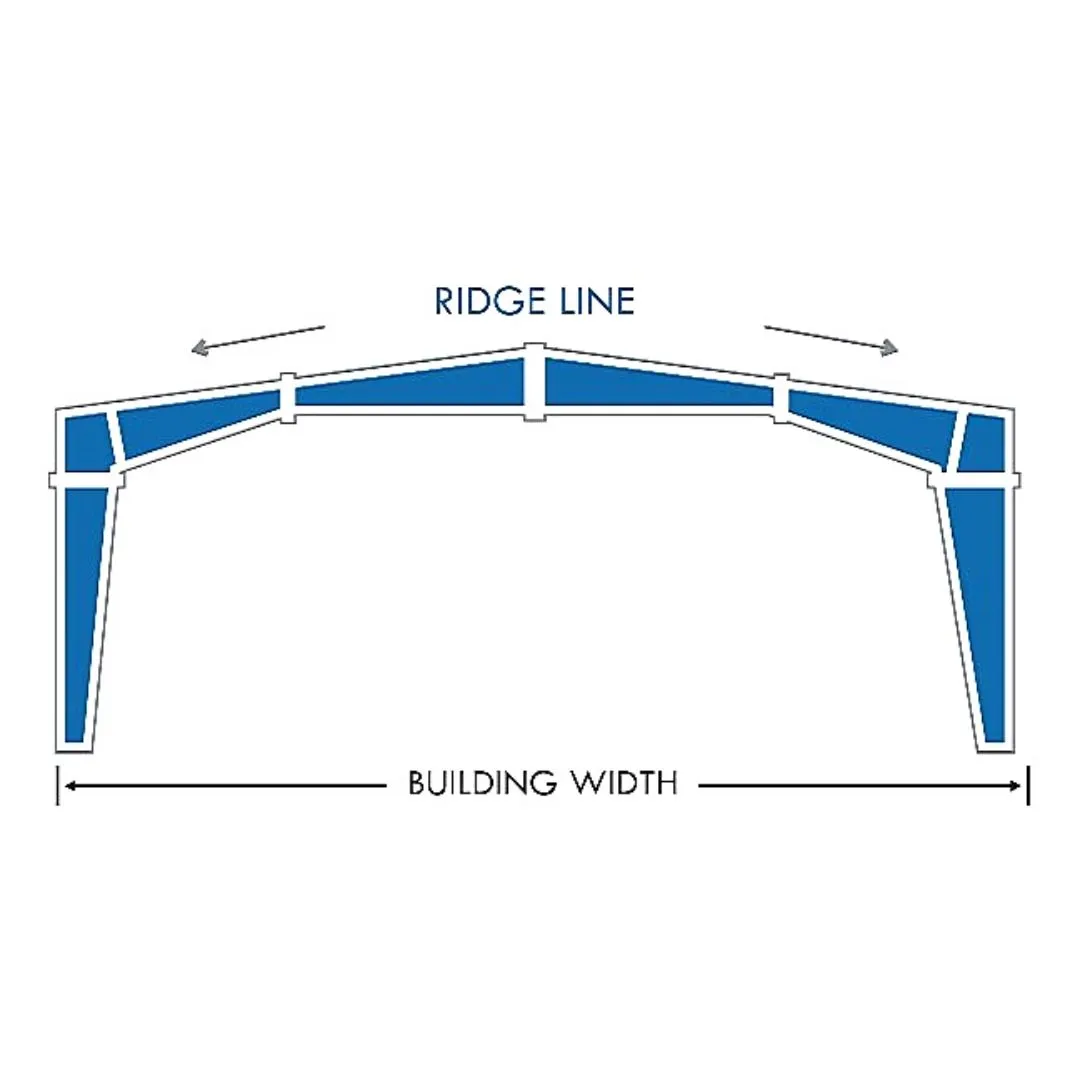

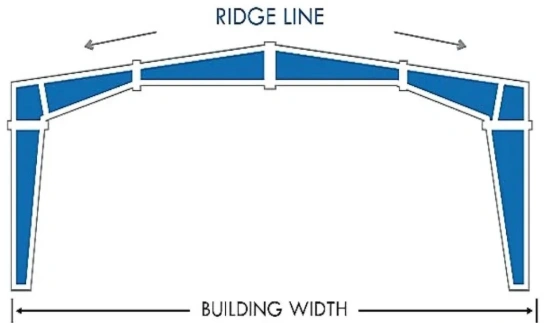

Tapered Column Clear Span Frame

Tapered column clear span frames optimize steel use by matching column depth to axial and bending demands.

Maximum depth occurs at the base where moments are highest.

Clear span designs provide uninterrupted workspace for heavy equipment and storage systems.

However, they require stronger foundations due to higher base reactions.

Tapered Column Clear Span Frame

Key Benefits of Standard Frame Type

A properly engineered standard frame type enhances structural efficiency and long-term operational performance.

  • checkmark Optimizes steel weight by matching section depth to bending moment distribution
  • checkmark Reduces foundation size through balanced load transfer mechanisms
  • checkmark Supports crane integration without compromising lateral stability
  • checkmark Enables modular expansion with predictable structural behavior
  • checkmark Complies with IS 800, IS 875, and IS 1893 design standards

Applications

Standard frame type systems support a wide range of industrial and commercial buildings where structural reliability and load management are critical.

  • checkmark Manufacturing plants requiring crane-supported material handling systems
  • checkmark Warehouses and logistics hubs demanding large, uninterrupted floor areas
  • checkmark Industrial workshops with mezzanine platforms and equipment loads
  • checkmark Commercial and institutional steel buildings requiring scalable expansion

Why Choose KMS Standard Frame Type

KMS Technologies designs standard frame type systems based on structural analysis aligned with Indian and international codes.

Our engineering team evaluates:

  • checkmark Span optimization and bay spacing
  • checkmark Crane load integration and dynamic behavior
  • checkmark Mezzanine vibration control
  • checkmark Wind and seismic performance
  • checkmark Future expansion feasibility

We apply finite element modeling and connection detailing to ensure predictable load transfer and constructability.

Our fabrication complies with IS 2062 material specifications and controlled welding procedures.

Get a Quote

FAQ

A standard frame type defines the structural configuration of primary rigid frames composed of columns and rafters designed to resist vertical and lateral loads through moment-resisting connections. The frame geometry, span arrangement, and member profile determine load transfer behavior, steel optimization, and foundation reactions.

KMS Technologies offers Multi Span I (two spans, one interior column line), Multi Span II (three spans, two interior column lines), and Multi Span III (four spans, three interior column lines). Wider buildings use more interior columns to reduce rafter depth and optimize steel consumption.

KMS Technologies designs standard frame type systems in compliance with IS 800:2007 for structural steel design, IS 875 (Parts 1–3) for dead, live, and wind loads, IS 1893 for seismic design, IS 807 for crane structures, and IS 2062 for material specifications. For global projects, MBMA and AISC guidelines are also applied.

Yes. Multi Span I with Cranes & Mezzanines integrates crane brackets and mezzanine beam connections into a two-span frame. Crane loads introduce vertical wheel loads, lateral surge forces, and longitudinal braking forces per IS 875 Part 5 and IS 807. Column sections are designed to resist combined axial and bending forces from both crane and mezzanine loads.

Tapered column clear span frames optimize steel use by matching column depth to axial and bending demands — maximum depth at the base where moments are highest. Clear span designs eliminate interior columns to provide uninterrupted workspace for heavy equipment and storage, though they require stronger foundations due to higher base reactions.
